Brand:HT Italia
Description:FULLTEST3 effects all tests required by IEC/EN60204-1:2006 and IEC/EN61439 in a simple, reliable and fast way. More than that the instrument carries out a considerable number of safety tests which makes it as a flexible solution also in compliance with other standards. Besides continuity of protection conductors, insulation and withstanding, FULLTEST3 tests type A, AC, and B general, selective and delayed RCDs, curve B, C, D, and K MCBs and type gG and aM fuses, line/fault impedance with standard or high resolution, non-trip earth loop impedance, leakage current, etc.FULLTEST3 is provided with innovative interfaces such as a colour touch-screen graphical display, 3 USB ports for PC connection, a USB memory stick, a USB printer and bar code readers. FULLTEST3 is the ideal partner for designers, manufacturers and installers.
Origin:Other country Italy
Model:FULLTEST 3
Payment Terms:T/T
Packaging Details:CARTON BOXES
Product detail:
- Continuity of protection conductors with 200mA
- Continuity of protection conductors with I>25A, V<12V AC

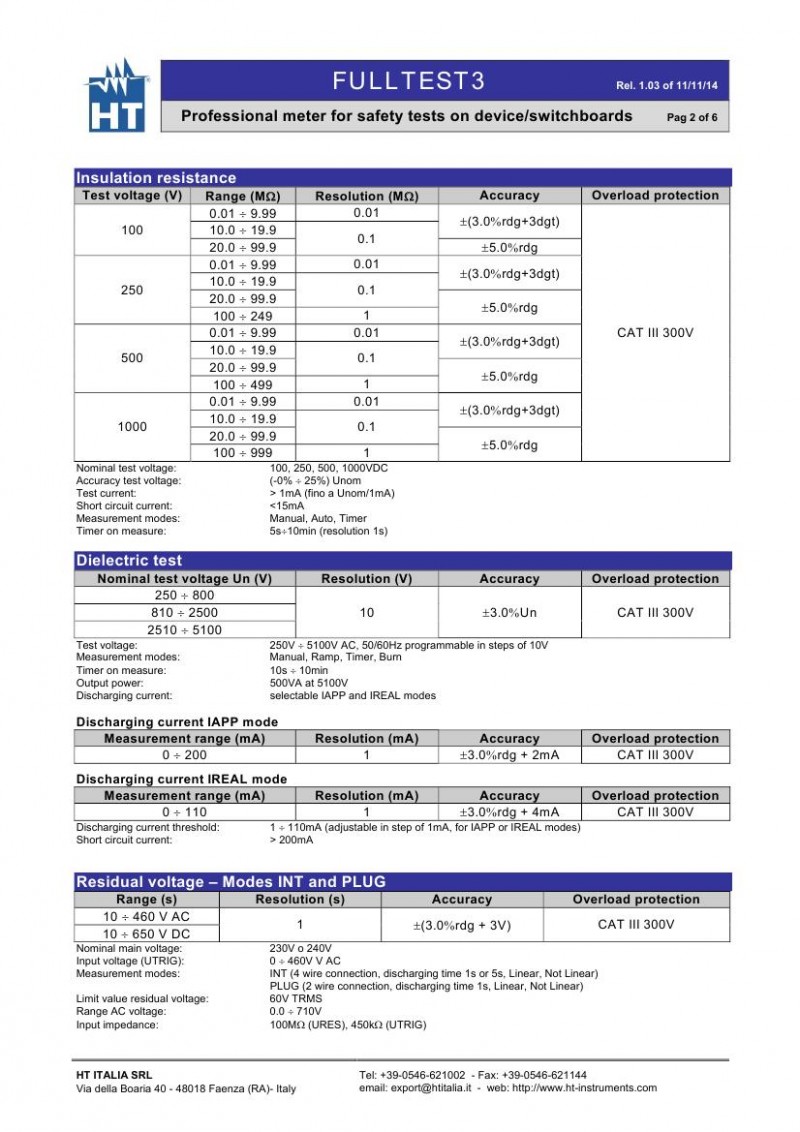

- Insulation resistance with 100,250,500,1000V DC
- Withstanding with programmable test voltage from 250V to 5100V AC
- Discharging time of internal capacitances and at the power input

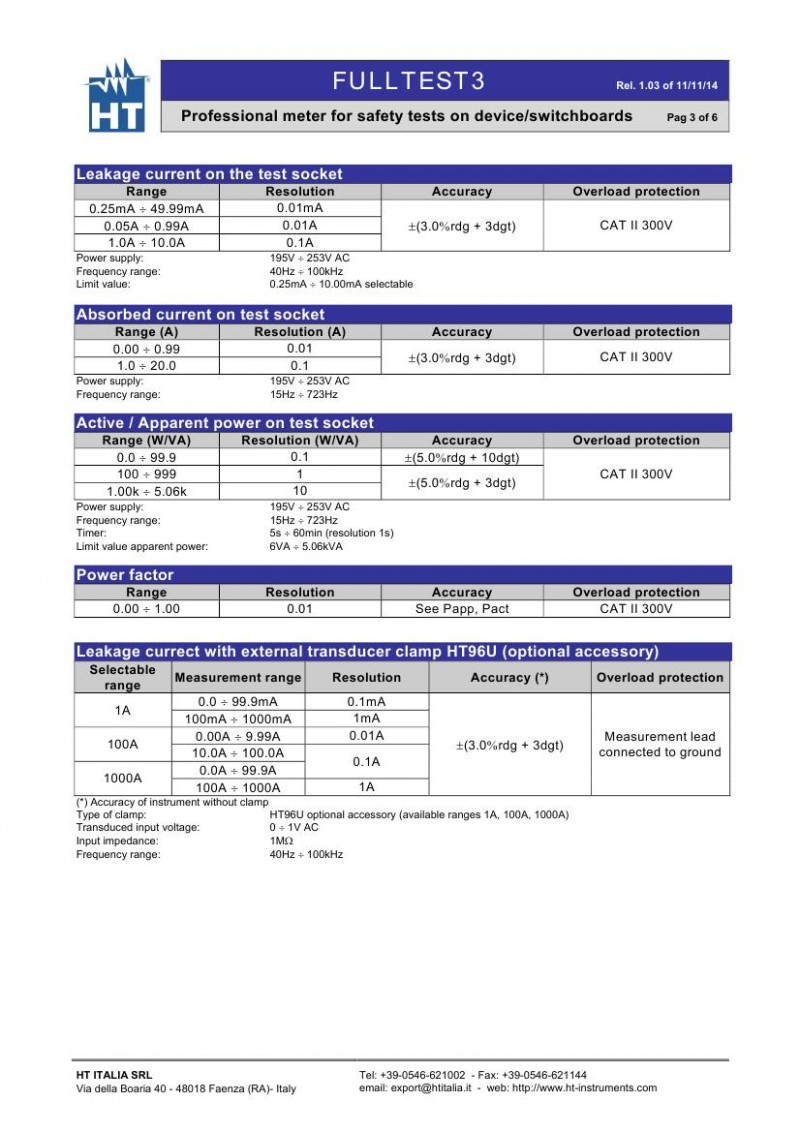

- Leakage/absorbed current and power consumption at the built-in test socket
- Leakage current by means of the external transducer HT96U (optional)
- Type A, AC, and B general, selective, and delayed RCDs up to 1000mA
- Line/fault impedance with prospective short circuit current calculation
- High resolution line/fault impedance (with IMP57 optional accessory)
- Curve B, C, D, and K MCBs and type gG and aM fuses
- Test I2t for verifies of short circuit conditions
- Selection of length, type, and insulation of the cable under test
- Selection of tripping time of the protection device under test
- Non-trip earth loop impedance
- Phase sequence indication
- TFT display with touch-screen
- Programmable timer
- Programmable thresholds
- Internal memory
- USB interface for PC connection
- USB interface for keyboard, printer and barcode reader connection
- Power cord
- Test cable red, 3m, 2 pcs
- Test cable black, 3m, 2 pcs
- Test cable blue, 3m
- Test cable green, 3m
- C2033X : Cable 3 wires with Shuko plug
- Cable with 5kV safety, 2 pcs
- Test lead CAT III, 3 pcs
- Alligator clip, 4pcs
- TOPVIEW2007 : Windows software + USB cable C2007
- Carrying bag for accessories
- ISO9000 calibration certificate
- User manual on CD-ROM
- Quick reference guide
- IMP57 : Accessory for high resolution Loop/Line Impedance
- HT96U : Rigid clamp 1-100-1000A AC, diameter 54mm
CE MARK
EN50106
IEC/EN 61010-1
IEC/EN60204-1:2006
IEC/EN60598-1
IEC/EN61187
IEC/EN61335-1
IEC/EN61439-1
IEC/EN61557-1
IEC/EN61557-13
IEC/EN61557-14
IEC/EN61557-2
IEC/EN61557-3
IEC/EN61557-4
IEC/EN61557-6
IEC/EN61557-7
LVD 2006/95/CE Directive
