Clamp meter

Click for original picture
Fob Price: Discuss personally
Payment Terms: delivery withindays since payment
Location: China Guangdong
  Linda    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:HT Italia

Description:Clamp meter HT4013 is designed for AC and DC current measurement up to 400A in compliance with CAT III 600V according to IEC/EN61010-1 standards. The clamp is provided with a built-in sensor to detect AC/DC voltage without contact with red LED signal. This model permits also to carry out resistance measurement, continuity test, frequency, capacity, diode test, duty cycle and temperature with K probe. Auto power off function permits to save internal battery life.

Origin:Other country Italy

Model:HT4013

Payment Terms:T/T

Packaging Details:CARTON BOXES

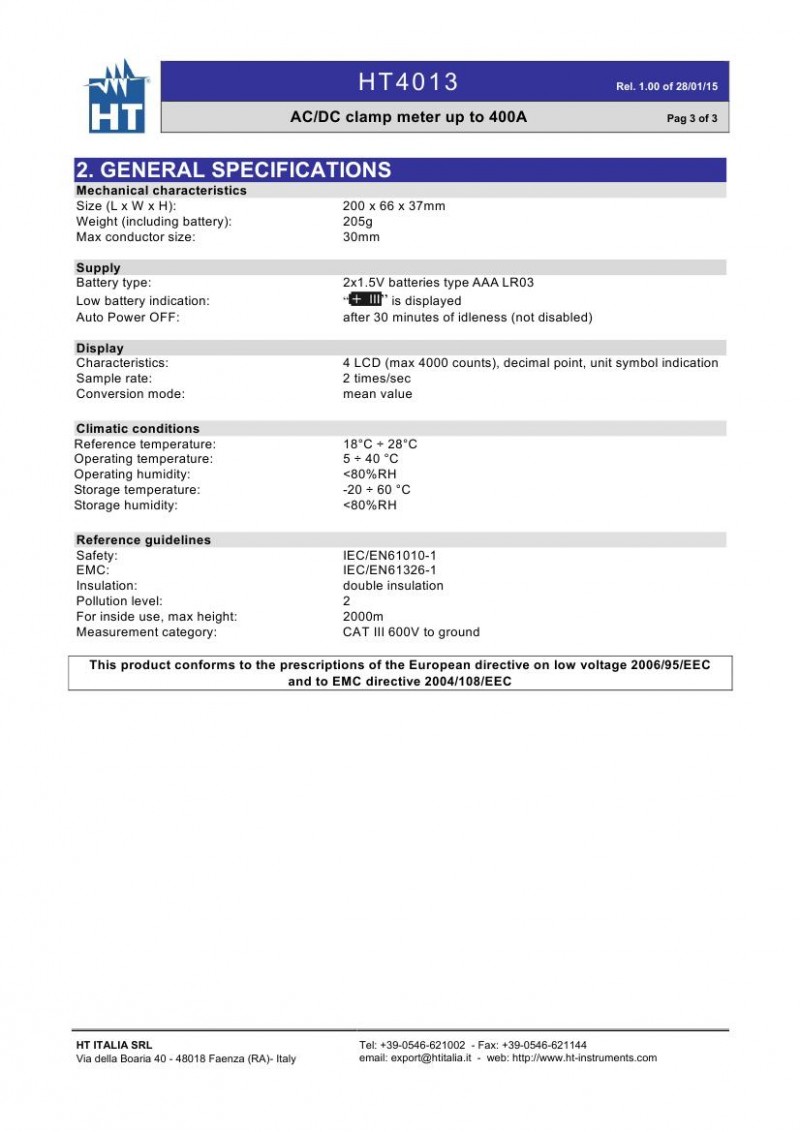

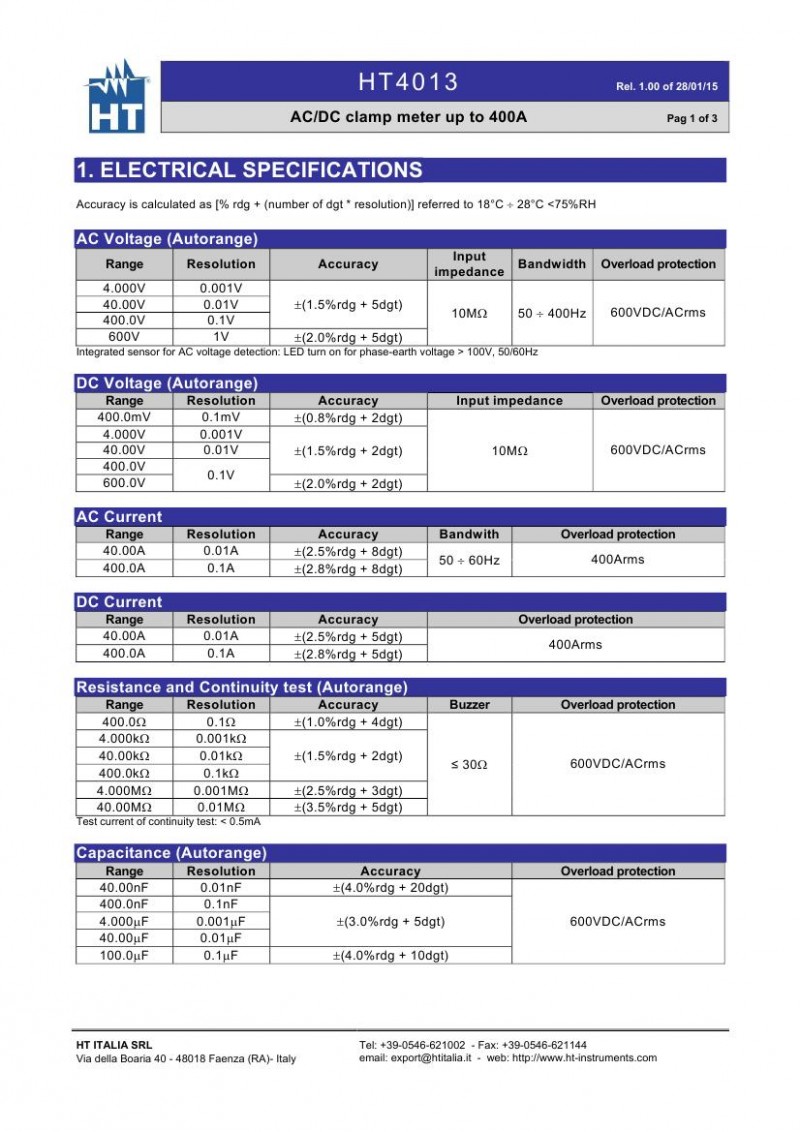

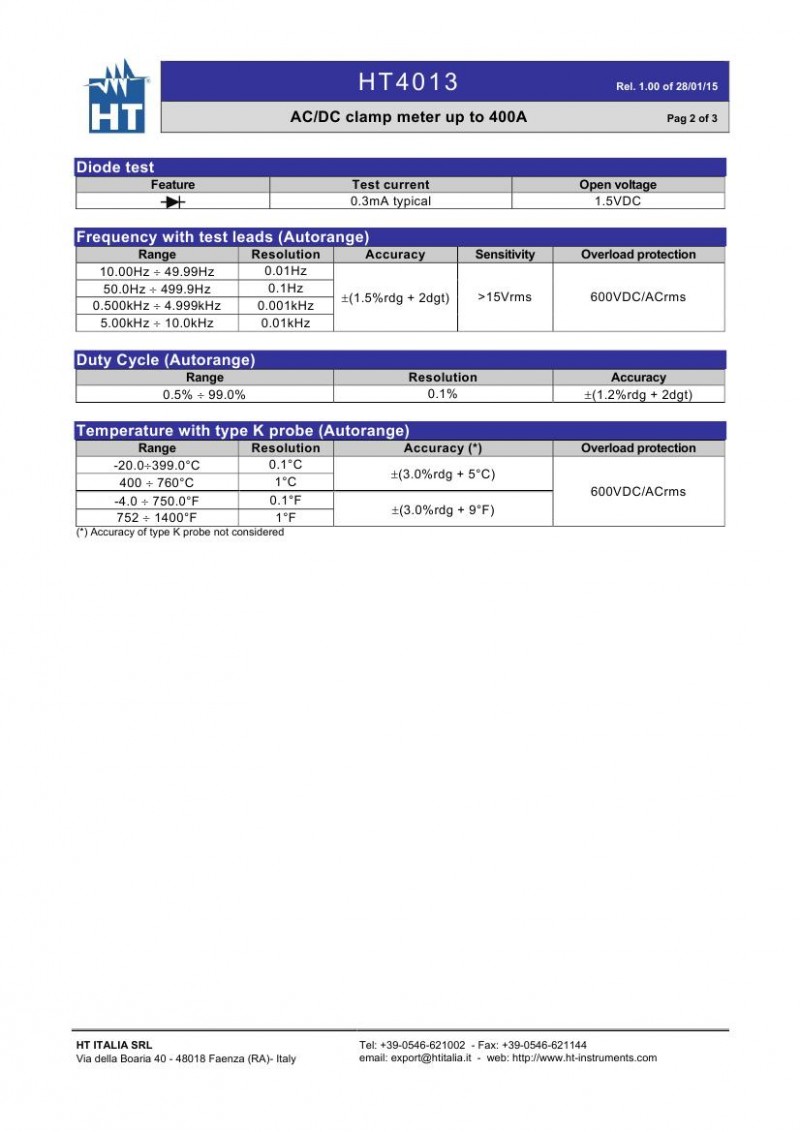

Product detail: pdf_HT4013_EN1-000000
pdf_HT4013_EN1-000001pdf_HT4013_EN1-000002

Function

AC/DC current up to 400A
DC/AC voltage up to 600V
“Voltsense” feature for AC voltage detection
Resistance
Continuity test with buzzer
Frequency with test leads
Capacitance
Diode test
Duty Cycle
Temperature with type K probe
Autorange
Data HOLD
Relative measurement
Auto Power OFF

OPTIONAL
  • TK107 : Type K probe for air/gas temperature
  • TK108 : Type K probe for semi-solid substances temperature
  • TK109 : Type K probe for liquid temperature
  • TK110 : Type K probe for surface temperature
  • TK111 : Type K probe for surface temp. with 90 degree tip
STANDARD
  • Couple of test leads
  • TK101 : Type K bead probe
  • Carrying bag
  • Batteries
  • User manual
