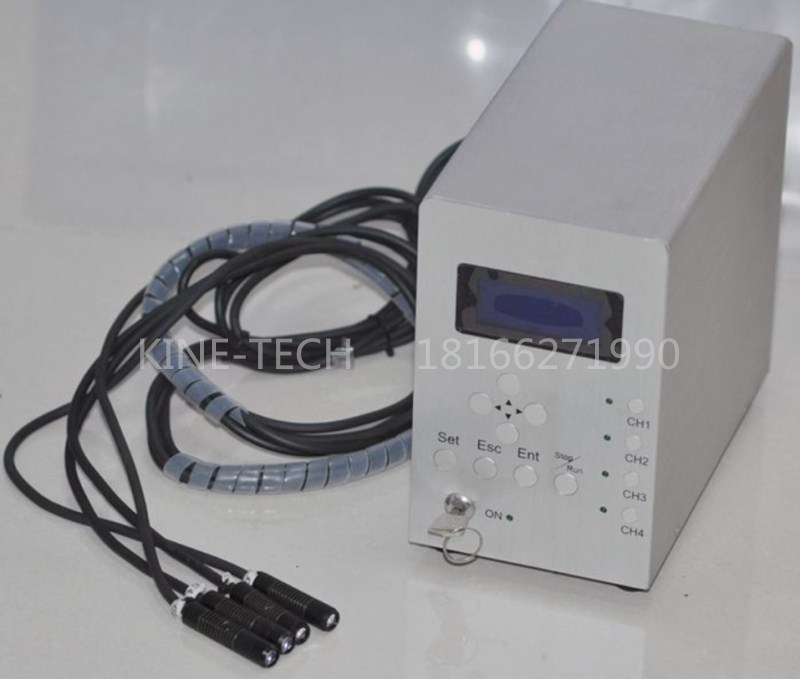

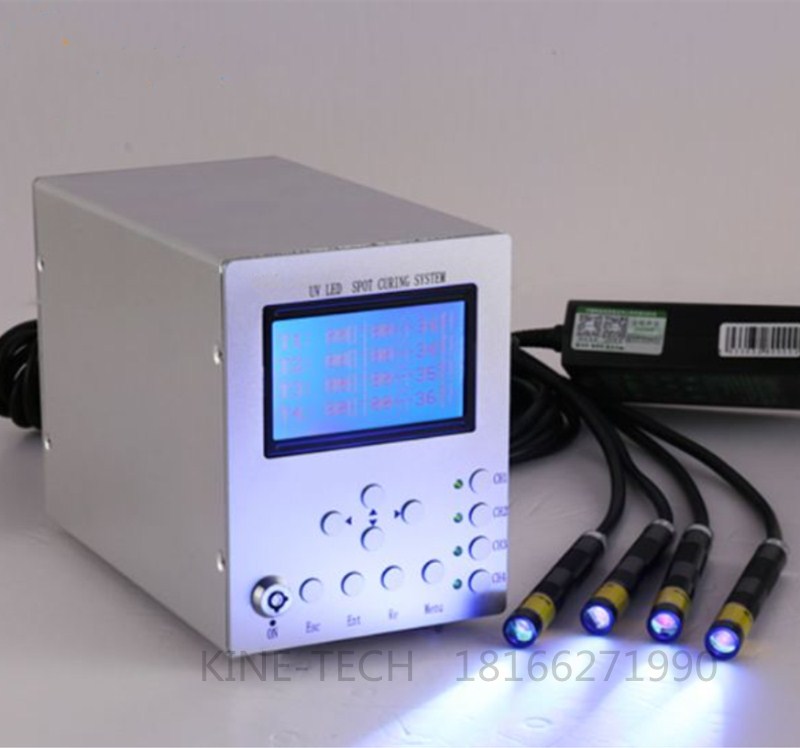

UV Glue LED Spot Curing System

Brand:OEM/KINE-TECH

Description:Contact SHENZHEN KINE-TECH CO.,LTD Email: sale（at）kine-tech.com adair(at) kine-tech.com Tel/whatsapp/Wechat: +86-18166271990 Skype:adairlee18(at)gmail.com WIDE VARIETY APPLICATION 1. Digital home appliances curing and bonding 2. Printing/Marking drying and curing 3. LCD curing and bonding 4. Electronic Components bonding and adhesive 5. Automotive parts curing and bonding 6. Medical equipment bonding and adhesive FEATURE 1. LED UV systems are very compact, have lower energy consumption than lamp systems and advanced features compared to other LED UV systems. Moreover, LED technology reduces the thermal impact on components. 2. The KINE-CURE is equipped with a temperature feedback controller originally developed by KINE-TECH. Its stable UV irradiation meets the industry's highest class of intensity. 3. In addition to its user-friendliness energy efficiency KINE-CURE is environmentally friendly. 4. these UV LED SPOT CURING SYSTEM are with a high irradiation intensity power, long life and user friendliness within the realm of UV curing.

Origin:China Guangdong

Model:KTCL-1.5

MOQ:1Sets

FOB:perSets350--1500USD

Port:SHENZHEN

Payment Terms:T/T

Supply Ablility:1Sets

Packaging Details:Each in one carton

Product detail: UV Glue UV LED Spot Curing System

Contact

SHENZHEN KINE-TECH CO.,LTD

Email: sale（at）kine-tech.com
        adair(at) kine-tech.com

Tel/whatsapp/Wechat: +86-18166271990

Skype:adairlee18(at)gmail.com

WIDE VARIETY APPLICATION

1. Digital home appliances curing and bonding
2. Printing/Marking drying and curing
3. LCD curing and bonding
4. Electronic Components bonding and adhesive
5. Automotive parts curing and bonding
6. Medical equipment bonding and adhesive

FEATURE

1.    LED UV systems are very compact, have lower energy consumption than lamp systems and advanced features compared to other LED UV systems. Moreover, LED technology reduces the thermal impact on components.

2.    The KINE-CURE is equipped with a temperature feedback controller originally developed by KINE-TECH. Its stable UV irradiation meets the industry's highest class of intensity.

3.    In addition to its user-friendliness energy efficiency KINE-CURE is environmentally friendly.

4.    these UV LED SPOT CURING SYSTEM are with a high irradiation intensity power, long life and user friendliness within the realm of UV curing.




LED HEADS KINE-CURE KTC-H1  365nm wavelength

Model No.	KTC-365-3	KTC-365-4	KTC-365-6	KTC-365-8	KTC-365-10	KTC-365-12
Irradiation diameter(mm)	ø 3mm	ø 4mm	ø 6mm	ø 8mm	Ø10mm	ø 12mm
Wavelength(nm)	365	365	365	365	365	365
Irradiation intensity (mW/cm 2)	10680mW/cm2	8800mW/cm2	6700mW/cm2	3800mW/cm2	1600mW/cm2	1100mW/cm2
Irradiation distance(mm)	10	14	16	27	25	25
