MP3 pcb by OEM manufacturer

Click for original picture
Fob Price: 30.00 USD/
MOQ: 10
Payment Terms: delivery withindays since payment
Location: China
  Ms. helena xu    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:aa

Product detail:

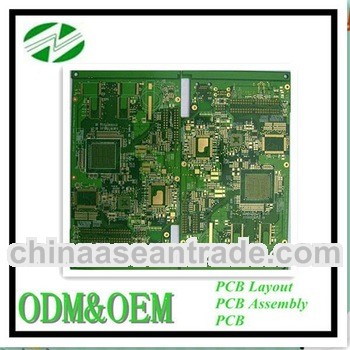

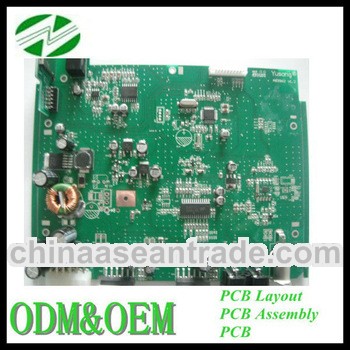

MP3 pcb by OEM manufacturer

Electronic PCBA products

We supply complete PCB Assembly services including PCB & material purchasing, SMT, testing, packing, delivery.

We offer good quality warrantee, shipping lead time guarantee and lower price guarantee for all over the world.

After we get customers' product design idea(ODM)/ Gerber file & BOM list(OEM), we could offer full PCB Assembly services as below:

1 Product design and development;

2 PCB making according to PCB design;

3 Material Purchasing as BOM offered;

5 SMT/Through hole assembly;

6 Testing;

Inside circuit testing finds out every problem from manufacturing or material itself.

7 Boards cleaning;

8 Mechanism Assembly;

9 Packaging: Burble bags & seperate box /carton

10 Quick &Safe Delivery.

One-stop pcb assemblies service, We can offer 1 to 12 Layer PCB fabrication, PCB design, PCB layout, PCB manufacturing, PCB Assemblies, components sourcing, PCBA Function Test, design solution.

Item

Manufacture Capability

Material

FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminium, Metal based

Layer No.

1-16

Finished Board thickness

0.2 mm-3.8mm’(8 mil-150 mil)



Board Thickness Tolerance

±10%

Cooper thickness

0.5 OZ-11OZ (18 um-385 um)

Copper Plating Hole

18-40 um

Impedance Control

±10%

Warp&Twist

0.70%

Peelable

0.012"(0.3mm)-0.02’(0.5mm)

Images

Min Trace Width (a)

0.1mm (4 mil)



Min Space Width (b)

0.1mm (4 mil)

Min Annular Ring

0.1mm (4 mil)



SMD Pitch (a)

0.2 mm(8 mil)



BGA Pitch (b)

0.2 mm (8 mil)





Solder Mask

Min Solder Mask Dam (a)

0.0635 mm (2.5mil)



Soldermask Clearance (b)

0.1mm (4 mil)

Min SMT Pad spacing (c)

0.1mm (4 mil)

Solder Mask Thickness

0.0007"(0.018mm)

Holes

Min Hole size (CNC)

0.2 mm (8 mil)

Min Punch Hole Size

0.9 mm (35 mil)

Hole Size Tol (+/-)

PTH:±0.075mm;NPTH: ±0.05mm

Hole Position Tol

±0.075mm

Plating

HASL

2.5um

Lead free HASL

2.5um

Immersion Gold

Nickel  3-7um  Au:1-5u''

OSP

0.2-0.5um

Outline

Panel Outline Tol (+/-)

CNC: ±0.125mm, Punching: ±0.15mm

Beveling

30°45°

Gold Finger angle

15° 30° 45° 60°



   Hangzhou Zhonghan Electronic Tech Co. Ltd is an aggressive and competitive manufacturer that foucusing on design, manufacture and marketing service of electronic products, and mainly deals in led products and OEM/ODM electronic manufacturing services.





We customize various LED dimmer as per customer's requirements. If you are interested, pls feel free to contact me.

If you send us your Gerber Files and PCB specifications, we will quote for you within 12 hours

We always try our best! So we do, we conquer, and we get there!

Try us!



Trade Term:

1. Payment: T/T, LC,Paypal.

2. Lead time: 10 working days for 100~500pcs, 15 working days for 500~2000pcs

3. Samples can be available within 6-8 working days

4. Shipping freight is quoted under your requests

5. Shipping port:  Ningbo, China mainland

6. Discouts are offered based on order quantities



Service:

1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your enquires influent English.

3. OEM & ODM are welcomed, OEM brand is available.
