High pressure pump F250

Click for original picture
Max pressure: 2800bar
flow rate: 50 L/min
Max Input power: 250KW
Fob Price: Discuss personally
Port: Xingang
Supply Ability: 50
Payment Terms: delivery withindays since payment
Location: China Tianjin
  Cecilia    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !
Product Detail


Description:High pressure pump is a kind of reciprocating pump, a class of positive-displacement pump. High pressure reciprocating pump use a cylindrical mechanism to create a reciprocating motion along an axis. With the positive displacement design, each revolution of the crankshaft creates a direct motion in the plunger rods [piston] resulting in a positive output of flow from the pump, which then builds pressure in a cylinder to force fluid through the pump. High pressure reciprocating plunger pump can be used for de-scaling, hard scale removal, hydro blasting and other applications. High pressure pumps are mostly common in triplex (three plungers), Our triplex plunger pumps deliver a smooth, constant flow and pressure. These high-pressure triplex plunger pumps can also be powered by a vari-drive to adjust the flow as needed for changes in demand. These pumps are designed in different series to cater to the specific requirements of different industries and sectors in an efficient manner. This series include model F0252、F1502、F150K、F150A、F2000M、F100G、F110、F90、F132G、F2000A、F200、F250 and etc.






Payment Terms:T/T

Supply Ablility:50Sets

Supply Time:Week

Delivery Time:2021-01-28

Packaging Details:wooden box

Product detail: F250 High pressure pump

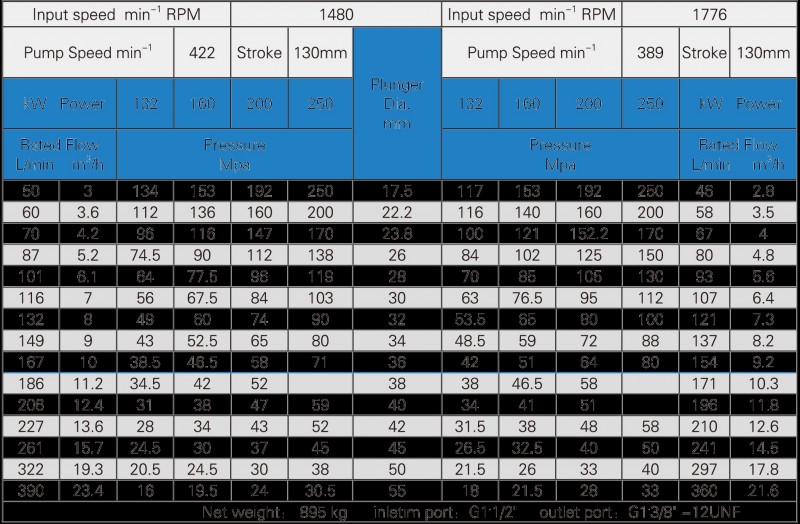

Flow rate: 50-545 L/min         Pressure: 180-2500bar    Input power: 132-250KW

F250 high-pressure pump is a combination of Chinese manufacturing and American Technology, It is designed for industrial cleaning application, large volume and high pressure.

Feature: Power ratings up to 250kW(340HP)
Flow rate up to 545L/min(143.9GPM)
Max pressure up to 40000PSI

Compact structure, light weight, high efficiency,
Convenient for maintenance and operation;
Herringbone gear transmission, low noise in power end;
Internal gear reduction, stable and long life operation;.
Triplex pump design
Forced lubrication system, low temperature increase;
Pump head made in stainless steel;
Ceramic or tungsten carbide plungers
Electric motor or diesel engine driven;


Application: Industrial Cleaning for kinds of pipeline, pressure vessel, boiler, heat exchanger, rust removal, chemical plant, power plant, sugar plant, oilfield, rubber plant, airport Runways, bridge , shipyard, mine , water injection and so on .

      Key words:
High pressure pump, plunger pump, piston pump, hydro demoliation pump,hydro jetting pump, water injection pump, skid mounted pump unit, portable high pressure pump, triplex plunger pump, pressure testing pump, hydrostatic testing pump, descaling pump, car washing pump, ship cleaning pump, RO pump, polymer injection pump, slurry injection pump, cement filling pump, mud pump, high pressure washer, high pressure waterblaster, high pressure cleaning equipment, high pressure cleaning unit, sewer jetter, sewer dredger;

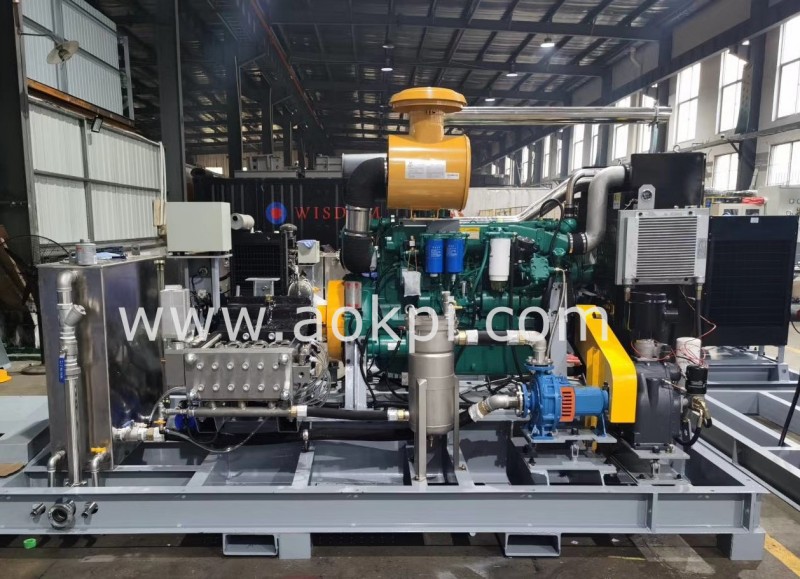

front side of deisel unitF250单页
