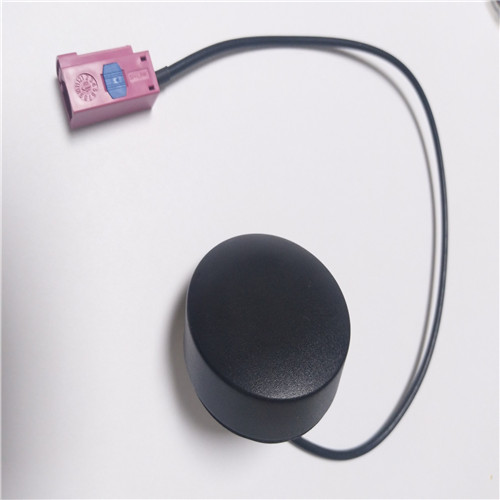

GPS/Glonass Antenna

Click for original picture
Fob Price: Discuss personally
Payment Terms: delivery withindays since payment
Location: China Henan
  Emily Li    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !
Product Detail


Payment Terms:T/T

Product detail:


Automobile Navigation,
Logistics Positioning and etc.


High stability,
High gain,
outside-band interference suppression,
Low Noise Figure

GPS/Glonass  Antenna
Electrical Index
Frequency-MHz 1575.42±1/1601-1610
VSWR <1.5
Nominal Impedance-Ω 50
Polarization RHCP,
Axial Ratio 3dB(max)
LNA Gain 28±2dB
Noise Figure <1.5
Supply Voltage 3-5V DC
Current Consumption 5-15mA
Mechanical Index
Cable Length -mm RG174,300
Connector Fakra or SMA male
Antenna Dimension-mm 46.6*14.5
Installation Way Screw
Ingress Protection IP65~IP67(exclude cable outlet)
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
Temperature-ºC -40~+85
Humidity-% 5~95

Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western unio etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
