10V20A high performance tester

Click for original picture
Sampling frequency: 10Hz
Current and voltage accuracy: ± 0.1% of FS
Number of channels: 16
Fob Price: Discuss personally
Payment Terms: delivery withindays since payment
Location: China Guangdong
  wendy huang    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:Neware

Description:BTS tester product features introduction  1. The system hardware is stable and reliable. Each channel has independent constant current and hardware constant voltage .  2. Each channel can independently set the step to increase the professional step setting . In any case, after "stop" (including power off), the step "continuation" function. Can be loop nested.  3, The data collection speed is fast, accurately capture the details of the change of voltage and current, with log function. Powerful data and curve processing, reporting capabilities. Data and curves can be exported to EXCEL, WORD, and can be edited.  4, The type of clamp is complete, can adapt to the test of different specifications of the battery, button battery, combined battery.  5, The model is complete range: according to customer needs to design and produce current 1mA-3000A, voltage 0V-1000V range of various types of equipment, can increase the negative voltage.  6, Can be used offline, measure the temperature internal resistance, and the SMBus function of the laptop battery.  7, Optional serial port, USB and network connection. With C/S mode, it can be controlled remotely.    Suitable for comprehensive performance testing of lithium polymer, lithium ion, nickel hydrogen, nickel cadmium, lead acid and other batteries; material research; formation and capacity sorting of small batch battery production; combination battery, laptop battery test, etc.

Origin:China Guangdong

Model:Digital Model

MOQ:1Sets

FOB:perSets1000--USD

Supply Time:Day

Packaging Details:Standard Packaging

Product detail: Main features of BTS-4000 system:

1, using high-speed hardware drive circuit to achieve fast hardware response, rise time ≤ 20ms;
2, high-speed data acquisition captures current, voltage change details and inflection point, the highest sampling up to 10Hz (100ms to record a piece of data);
3, support DCIR (DC internal resistance) test, the test results can be automatically taken point calculation;
4. The powerful real-time control system design ensures the real-time and accuracy of the test control, and the step time error does not exceed 50 milliseconds;
5, support pulse charge and discharge function, pulse mode step time control diviation does not exceed 1 millisecond;
6, each pulse step supports 32 different pulse currents;
7, the minimum pulse width is up to 500 milliseconds;
8, test mode support: constant current, constant voltage, constant current and constant voltage, constant power, constant resistance, pulse
9, each channel is independently programmed, and supports up to 254 steps;
10,65535 loops, nested in three layers;
11, support single-step  set recording conditions and protection conditions;
12, the switching time from charging to discharging is less than 100 milliseconds;
13, support curve comparison function;
14, support offline testing, the device supports up to 1GB of data storage space;
15, support LAN remote control and access devices;
16, using the database to centrally manage test data, powerful data retrieval and traceability;
17, data viewing; flexible and customizable automatic reports, support Excel, TXT;



荣誉证书英文-工厂环境

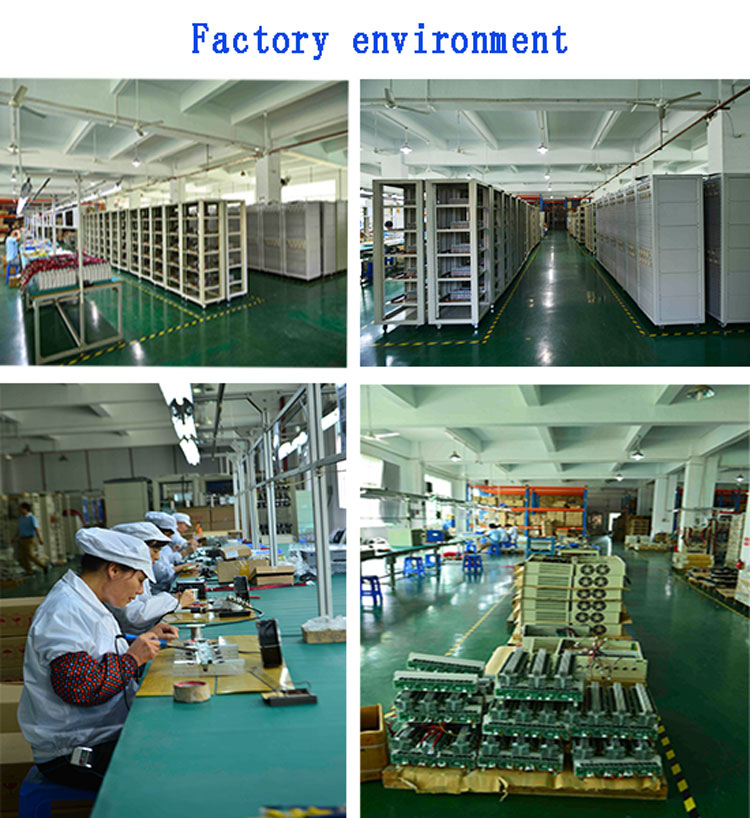

英文-工厂大图
