Brand:LANGQING

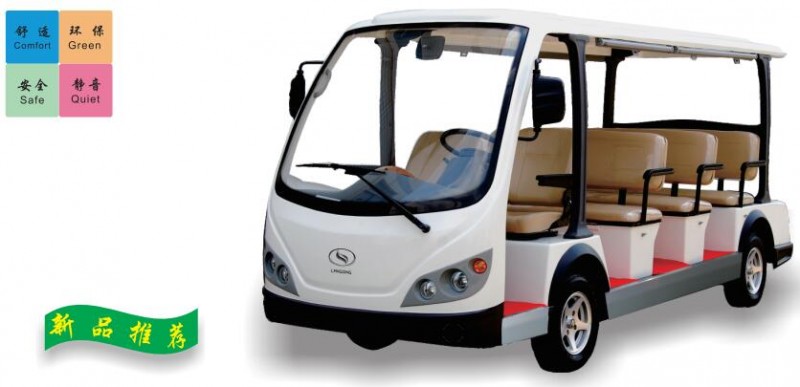

Description:Luxury 11 Seats Electric Car with CE Approval
Origin:China
Model:LQY113B
MOQ:1Unit/Units
Port:Nasha, Huangpu,Shenzhen
Payment Terms:T/T
Supply Time:Day
Packaging Details:Qty/20'GP (Assembled) 1 unit Qty/40'GP (Assembled) 2 units
Product detail:
| Performance: | ||
| Passenger capacity | 11 seats | |
| Max.Speed | 30km/h | |
| Range(loaded) | 100km | |
| Climbing Ability(loaded) | 20% | |
| Braking Distance | ≤4.5m | |
| Min.Turning Radius | 6.5m | |
| Min.Clearance | 150mm | |
| Recharge time | 8~10h | |
| Dimensions | ||
| L×W×H | 4615×1520×1970mm | |
| F/R Tread | 1280/1270mm | |
| Axle Distance | 2650mm | |
| Curb Weight | 1210kg | |
| Max. loading | 935kg | |
| Standard Configurations | ||
| Motor | 72V/5KW DC motor | 72V/7.5KW AC motor |
| Controller | 72V/400A controller | |
| Body & Roof | High impact fiber glass | |
| Batteries | Free-maintenance Batteries 6V/170Ah*12 pcs | |
| Windshield | See-through Laminated glass | |
| Seats | Sponge + artificial leather | |
| Rear view mirror | 2pcs | |
| Bumper | Front and rear Bumper | |
| Tire | 155/80 R12 Radial tire (Auto tire) | |
| Chassis | Welded tubular steel with rust-proof powder coated paint | |
| Steering | Power-Assisted Steering | |
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | |
| Rear suspension | Leaf spring+shock absorber non-independent suspension | |
| Lighting system | 4 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | |
| Sound system | Radio and MP3 player; Speaker | |
| Brake system | 4-wheel hydraulic drum brake system + handbrake | |
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | |

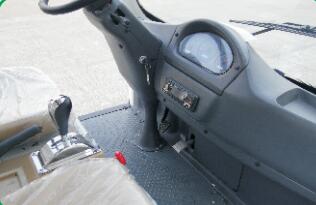

| Dashboard | Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | |
