Welded Pipe Mill Line

Click for original picture
Fob Price: Discuss personally
Port: Shanghai
Payment Terms: delivery withindays since payment
Location: China Jiangsu
  张凌云    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:Reliantt

Description:RT273 Welded Pipe Mill Line is to produce round tube diameter of 165-273mm and wall thickness of 4.0-10.0mm. We can also supply the customized machines.

Origin:China

Model:RT273

MOQ:1 SETSets

Port:Shanghai

Payment Terms:T/T

Supply Time:Month

Delivery Time:2017-07-06

Packaging Details:1. LCL Loading Packaging: Steel pallet and plywood case. 2. FCL Loading Packaging: Steel pallet with plastic film. 3. Shipping: by sea

Product detail: Features

RT273 Welded Pipe Mill Line is to produce round tube diameter of 165-273mm and wall thickness of 4.0-10.0mm.

We can also supply the customized machines.

RT273 Welded Pipe Mill Line is a series of machines that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. The round pipe will then be sent into the weld box where the tube is welded by a high frequency or solid state welder. The welded pipe will be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipe will be cut to length and bundled.

Application

1. Water pipe

2. Heating pipe

3. Low-pressure process pipeline

4. Low pressure fire fighting pipeline

5. Sewage Pipes

6. Steel Scaffolding Pipe

7. Wire and cable protection pipe

8. Structural support Steel Pipe

9. Industrial Steel Pipes

10. Decoration Pipe

11. Oil & Gas Pipes

Process Flow

Slit Coil ---- Un-Coiler ---- Snubber Roller ---- Pinch Roll & Leveling Machine ---- Shearing And Butter Welder ---- Storage/ Accumulator ---- Forming ---- Welding ---- Cooling ---- Sizing ---- Cutting Saw ---- Run Out Table ---- Finishing ---- Pipe Collecting and Packaging

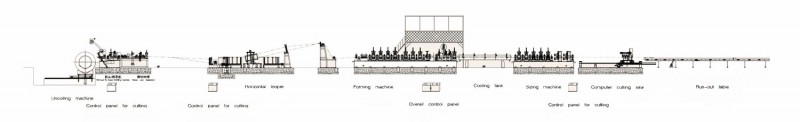

Work Flow

Technical Parameter

Model

Diameter of Welded Tubes

Wall Thickness of Round Tube

Max. Size of Square Tube

Max. Size of Rec. Tube

Wall Thickness of Sq & Rec Tube

Speed of Tube Welding

Power of Major Motor

High Frequency Power

RT16

8-25mm

0.3-1.0mm

20x20mm

12.7x25.4mm

0.3-0.8mm

20-100m/min

30KW

100KW

RT25

8-32mm

0.4-1.3mm

25x25mm

20x30mm

0.4-1.0mm

20-100m/min

45KW

100KW

RT28

10-40mm

0.5-1.5mm

30x30mm

20x40mm

0.5-1.2mm

20-90m/min

75KW

100KW

RT32

13-50.8mm

0.6-2.0mm

40x40mm

30x50mm

0.6-1.5mm

20-90m/min

110KW

150KW

RT50

19-63.5mm

0.8-2.5mm

50x50mm

40x60mm

0.8-2.0mm

20-90m/min

132KW

150KW

RT50

to 76

19-76mm

0.8-2.5mm

60x60mm

40x80mm

0.8-2.0mm

20-90m/min

160KW

200KW

RT50

to 100

25-100mm

0.8-2.0mm

76.2x76.2mm

50.8x101.6mm

0.8-1.5mm

20-80m/min

160kw

150kw

RT60

19-63.5mm

1.0-3.0mm

50x50mm

40x60mm

1.0-2.5mm

20-80m/min

185KW

200KW

RT60

to 80

25-80mm

1.0-3.0mm

60x60mm

40x80mm

0.8-2.5mm

30-80m/min

75KWx2

200KW

RT60

to 100

25.4-100mm

1.2-2.5mm

75x75mm

50.8x101.6mm

1.2-2.0mm

20-60m/min

185KW

200KW

RT76

25-90mm

1.5-4.0mm

70x70mm

60x80mm

1.5-3.5mm

20-80m/min

185KW

300KW

RT76 to 127-A

50.8-127mm

1.2-3.0mm

100x100mm

80x120mm

1.2-2.5mm

20-70m/min

110KWx2

300KW

RT76 to 127-B

49-127mm

1.5-4.0mm

100x100mm

80x120mm

1.5-3.0mm

20-70m/min

110KWx2

300KW

RT90

30-115mm

1.5-4.5mm

90x90mm

80x100mm

1.5-3.5mm

20-60m/min

132KWx2

300KW

RT90 to 129

48-129mm

1.0-2.5mm (550Mpa)
2.6-4.0mm (350Mpa) (G.I.450Mpa)

101.6x101.6mm

80x120mm

1.0-3.0mm

20-65m/min

132KWx2

300KW

RT90

to 140

60-140mm

1.5-4.0mm

110x110mm

100x120mm

1.5-3.0mm

20-60m/min

132KWx2

350KW

RT115

32-127mm

1.5-5.0mm

100x100mm

80x120mm

1.5-4.0mm

15-60m/min

132KWx2

400KW

RT115 to 140

60-140mm

1.5-4.5mm

110x110mm

100x120mm

1.5-3.5mm

15-50m/min

160KWx2

400KW

RT165

89-165mm

2.0-6.0mm

127x127mm

100x150mm

2.0-5.0mm

15-50m/min

200KWx2

500KW

RT219

114-219mm

3.0-8.0mm

165x165mm

140x200mm

3.0-6.0mm

15-50m/min

250KWx2

600KW

RT273

165-273mm

4.0-10.0mm

210x210mm

180x240mm

4.0-8.0mm

15-40m/min

250KWx1
185KWx2

800KW

RT355

219-355mm

4.0-12.0mm

280x280mm

260x300mm

4.0-10.0mm

15-30m/min

250KWx2
200KWx2

1200KW

Machine Configuration

Entry Section

Double Cone Un-coiler

Hydraulic Expand with Coil Car

Snubber Roller

1set

Pinch Roll & Leveling Machine

2-roller + 5 roller

Shear & Butt Welder

Automatic

Accumulator

Horizontal

Forming Section

Pinch Roll

2-roller

Round shape Forming

Normal

Welding Section

Guide Roll Stand

1 set

Extruding Roll Stand

1 set

Scraper Frame

2 sets

H.F. Welder

Solid State

Cooling Unit

Water cooling tank

Sizing & Straightening Section

Sizing Unit

Normal

Turk’s Head

2 stations

Measuring Roll Stand

With encoder

Flying Cutting Saw

Pneumatic Friction Saw

Run-out Table

Singe side

Double side

Photos for Reference

Double Cone Un-coiler with Coil Car

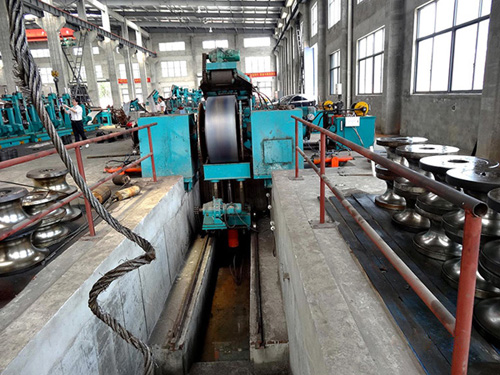

1. Double Cone Un-coiler with Coil Car

Snubber Roller, Pinch Roll & Leveling Machine

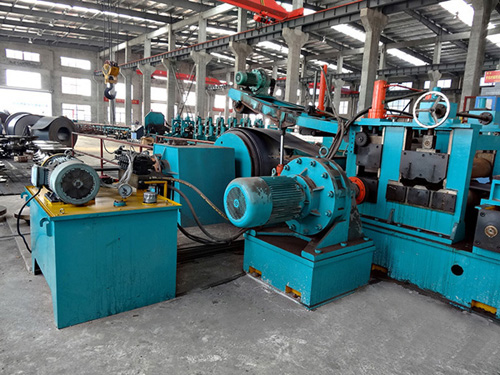

2. Snubber Roller, Pinch Roll & Leveling Machine

Automatic Shear & Butt Welder

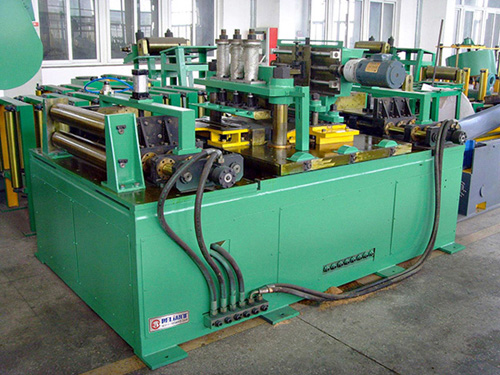

3. Automatic Shear & Butt Welder

Horizontal Accumulator

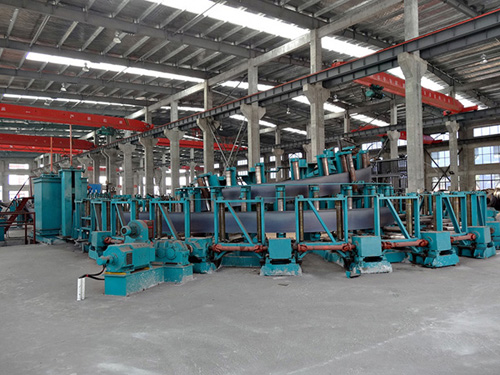

4. Horizontal Accumulator

Forming Section

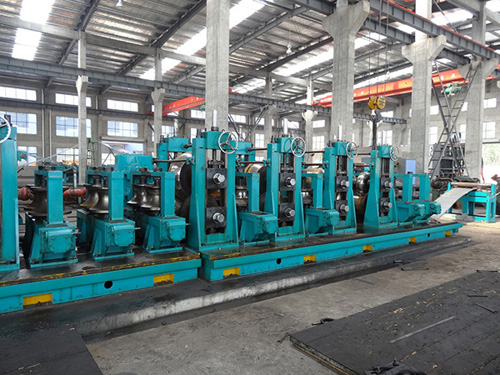

5. Forming Section

Water Cooling Tank

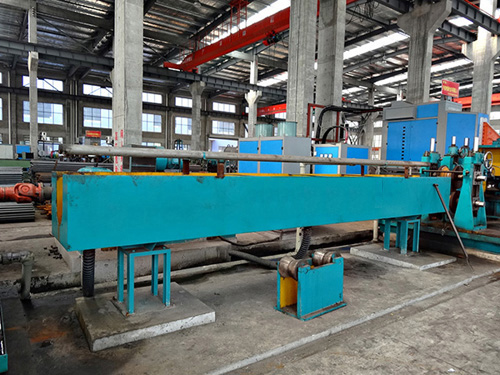

6. Water Cooling Tank

Sizing Section
7. Sizing Section
