Candy Pillow Wrapping Machine

Click for original picture
Fob Price: Discuss personally
Port: Shanghai
Payment Terms: delivery withindays since payment
Location: China Shanghai
  叶敏敏    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:HTL

Description:It is a high speed packing machine for all kinds of variant candy such as square, ball, round, column, button, ellipse and regular piece of candy.

Origin:China Jiangsu

Model:HTl-A800

Port:Shanghai

Payment Terms:T/T

Packaging Details:woodencase

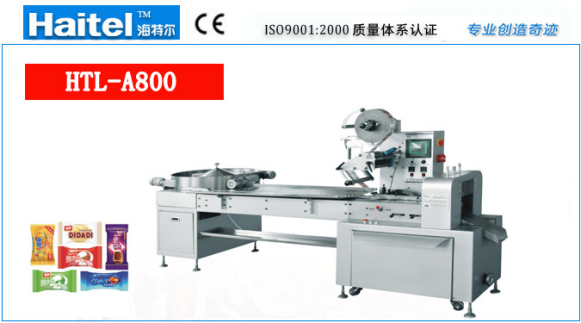

Product detail: 图片1

1. Characteristics:

1. It’s use servomotor, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and films.

2. Human-machine operation, convenient and quick parameter setting.

3. Self diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.

5. Separate PID control to temperature, suitable for various packing materials.

6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7. Simple driving system, reliable working, convenient maintenance.

8. .All the controls are achieved by software, convenient for function adjusting and upgrading.

2. Application:

       It is a high speed packing machine for all kinds of variant candy such as square, ball, round, column, button, ellipse and regular piece of candy.

3. Main technical parameter:

Mode

HTL-A800

Candy size

(L)=10~55mm, (W)=10~30mm, (H)=4~25mm

Packing speed

200~1000 pcs/min

Film width

≤180mm

Voltage

380V/50Hz

Total power

4.5 KW

Dimension (L*W*H)

3200×1200×1500 mm

Total weight

900 kg
