bearing 6204 for idler

Brand:XKTE

Description:Started in 2006, We are a manufacture of conveyor roller bearing, concentrates on manufacturing conveying machinery bearings, including idler roller bearing, TN bearing, deep groove ball bearing. Spherical Roller Bearing and self-aligning ball bearing. We have our own Brand name XKTE

Origin:China

Model:6204

MOQ:1

Port:Qingdao

Payment Terms:T/T

Packaging Details:plastic cover + carton + wooden pallet

Product detail:

professional commitment to conveying machinery bearing

Passed Certifications- ISO9001:2015

Product tested by National Coal Science Institute and ProvincialQualityInspectionCenter

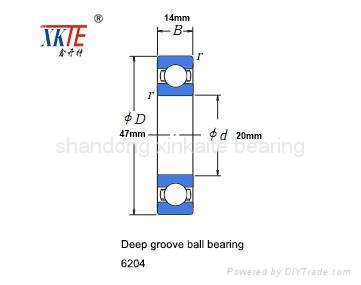

Deep Groove Ball Bearing (Idler roller bearing)
Model	Bore Size	Outer Diameter	High	Weight
6004	20	42	12	0.069
6204	20	47	14	0.106
6205	25	52	15	0.128
6305	25	62	17	0.232
6306	30	72	19	0.346
6307	35	80	21	0.457
6308	40	90	23	0.639
6309	45	100	25	0.837
6310	50	110	27	1.082
Clearance (C2 C3 C4)



Structure:	Deep Groove	Type:	Ball	Brand Name:	XKTE
Bore Size:	0 - 20 mm	Outside Diameter:	0 - 47 mm	Model Number:	6204
Precision Rating:	P0 P6 P5 P4 P2	Seals Type:	ZZ 2RS OPEN	Number of Row:	Single Row
Place of Origin:	Shandong, China (Mainland)	Material:	Chrome Steel GCR15	Service:	OEM Customized Services
Application:	Conveyors	Weight:	0.106kg	Certificate:	ISO9001:2015

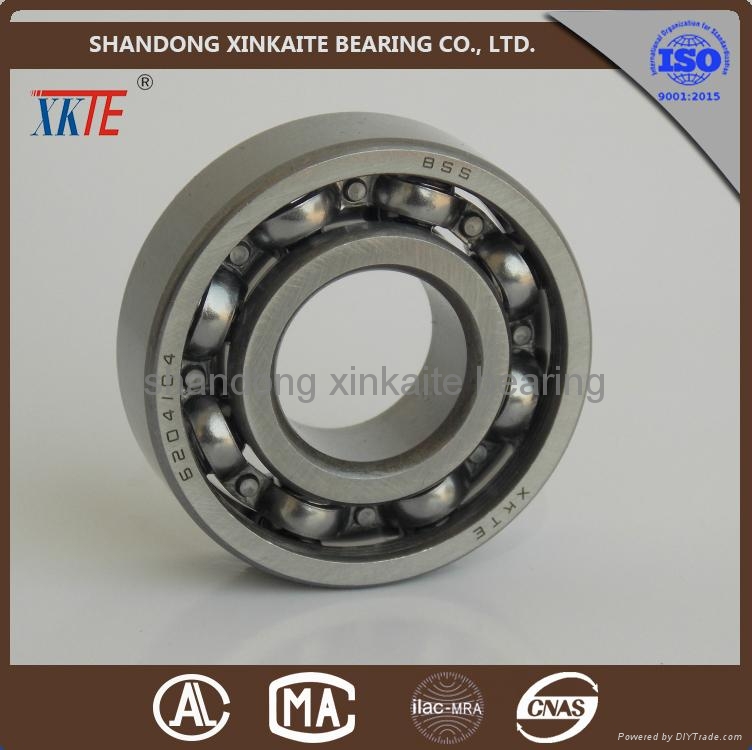

Deep groove ball bearing 6204, or single row radial, ball bearings, It usually consist of a pair of rings, a retainer, a single row of steel balls. Its structure is simple, easy to use, non-separable, It is the most widely used type of bearing. This type of bearing is mainly used to bear radial load, but it can also bear a certain amount of axial load in either direction.

We are a manufacture specialized in producing conveyor roller bearing. bearings also have a clearance value. This provides the bearing room for expansion between the bearing races and will add a small amount of play between the two rings. large clearance C3/C4 usually used in mining machine.



C1	Smaller than C2
C2	Smaller than Normal
CN	Normal
C3	Greater than Normal
C4	Greater than C3

Applications:

Agriculture

Automotive

Mining machine

Conveyor machine

Chemical

General industrial



Products compare

Professional brings quality, detail creates success



XKTE bearing's most fundamental difference is:

The other manufacturers make products considering the price cheap, but we make products considering the service life. Each of the idler roller bearings we produce is fully implemented in the national standard. XKTE bearings exist for their quality and brand. You can deny our price, but you can never find out our products' defects in quality. XKTE conveying machinery bearing, a big brand, is worthy of your trust.

The most important in the running of the conveyor is the idler roller. And the most important part of the idler roller is bearing. That is to say the selection of bearings is the top priority of the idler roller accessories.

Let me share with you, about what the details of the processing does a good idler roller bearing have got. How to identify idler roller bearing?



First, the identification of the bearing

For the low cost pursue, some small manufacturers print the black stamps on the bearing to identify models and manufacturers, with some very simple equipments, electro etching solutions, and very simple templates. Because of the low cost, it is used by some inferior products.

Formal manufacturers use laser engraving. The stamps are deep, have significant dents with hand touch, good-looking, with no breakpoints, and are never disappeared. This obviously improves the bearing grade.

The use of bearing retainer



Bearing retainer selection is very important. Because once too much dust stuck into the bearing, the retainer will be first worn. If the bearing retainer is broken, the bearing will be directly broken. Imported bearings use big rivets to thicken retainers. XKTE bearing is completely in accordance with the process of imported production, so each piece of ours is made to a high quality, and guaranteed to operate for thirty thousand hours.

Selection of nylon retainer

Nylon retainer bearing is often used in the mine. Nylon retainer has better anti-stuck performance and wider range of temperature than iron retainer. In the underground its anti-static performance is also better. To get safety certificate for coal mining products must use nylon retainer KA bearing. The selection of nylon retainer is crucial to KA idler roller bearing, while the material of nylon retainer must be pure and has enough toughness and strength, because the retainer will get very soft if it is made of bad material or mixed material, thus to make no anti-stuck performance within the bearing.

The ring is the main part and the important part of the idler roller bearing. Best idler roller bearing has deep groove ball, and large clearance. But deep groove doesn't mean to dig the channel with a simple way of enlarge the steel ball. The thickness of the bearing is certain, so to get the ball big and the groove deep will shorten service life. Our XKTE bearing uses way of thickening ring to get the standard of deep groove and large clearance, improves the anti-stuck performance, and effectively increases the service life.



Bearing material and hardness

Good idler roller bearing must be made of bearing steel, named "High Carbon Chromium Bearing Steel (Fully quenched class) GCr15". At present the standard hardness of idler roller bearing is 60-65 degree, while hardness of ring is 61-62 degree, andball is 64-65 degree.

The simple way to identify idler roller bearing is to see if its hardness is over 60 degree, because only bearing steel can get over this degree.



Grease selection of roller bearing

Many customers ignore this most critical point. The thirty-thousands-hours operation is a very long term. This has to be guaranteed by enough quality and quantity grease. And this should also be taken into account of working in different seasons.



Special note: please choose special high temperature grease if working environment is over 120 °C for long time or low temperature grease if it below -20 °C.

Our Factory:

Shandong XinKaite Bearing Co. Ltd. is located in Yandian of Liaocheng in mainland China. Our company concentrates on manufacturing conveyor machinery bearings, including deep groove ball bearing, KA bearing, spherical roller bearing and self-aligning ball bearing. and also idler roller, idler roller accessories, and 0 class bearing.



We enjoy high states in the industry because of our products' high quality and low price, and professional stability.



Supply Ability:1000000 Pieces / per Month



 We have our own Brand name XKTE, all of our products are made of Chrome Steel GCR15, continuous working for more than 30 thousand hours ensured



Started in 2006, formerly Shandong Guan County XinKai bearing Co. Ltd., our company relies on the Yandian professional bearing market, pushes the business to market domestic and abroad. And there are many long-term fixed partners of ours within the areas centered by conveyor machinery bearing industry. With our company's gradually growing, from the rough to the bearing, we set up a one-stop production line. Thus to make our products have a very high market competitiveness.



Certifications

Product tested by National Coal Science Institute and Provincial Quality Inspection Center

CertificationsISO9001:2015
