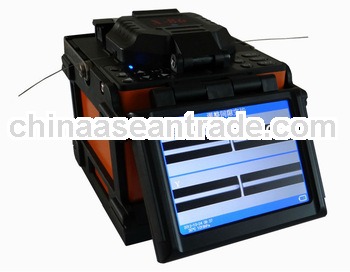

X-86 Fiber Fusion Splicer



Features:     fiber optical cables machinery

Core to core alignment digital system;

The arc is calibrated by the environmental parameters as temperature and pressure;

Variety display group,the Maximum image magnification is 300;

Typical splicing time is 8 seconds,26 seconds heating;

Metro style GUI,easy to operate;

Intelligence operate,auto heat or work when open the shield;

High definition 5.7' colorful LCD;

Hight to 4000 groups fusion records can be stored;

Rubber armor protect machine body from shock or impact;

High capacity,plug battery,long work time;

Software can be upgraded through USB port;

Multilingual machine



Teachnical parameters:  fiber optical cables machinery


Applicable fiber type

SM(Single Mode),MM(Multi Mode),DS(Dispersion Shift),NZDS(Non Zero Dispersion Shift)

Diameter of cladding

80 -150um

Diameter of coating

160 - 900um

Typical fusion loss

SM 0.02dB,MM 0.01dB,NZDS 0.03dB, EZ-Bend 0.04dB

Return loss

Better than 60dB

Cutting length

10~16mm(Diameter of coating < 250µm);16mm(Diameter of coating 250~1000µm)

Fusion program

40 groups

Operate mode

Manual,Automatic

Auto-Heat

Available

Typical fusion time

Less than 7 seconds

Heating time

26 seconds for 60mm,40mm length heat shrinkable sleeve

Magnification

300 times for X|Y single display,150 times for XY double display

Photoelectric system

Two high sensitive cameras,5.7’640×480 pixel colourful LCD

Fusion data record

Store 4000 groups fusion record

Loss evaluation

Available

Pull testing

1.8~2.2N

Interface

GUI menu interface,easy manipulation

Battery capacity

8800mAh,200 times of fusion and heating,hot plug,real-time power monitor

Power supply

Adaptor,input:AC 100-240V(50/60HZ),output:DC 11~13.5V

Electric pole lifetime

More than 3000 times fusion,user can replace pole conveniently

External port

USB2.0 port,used to derive fusion record data ,software upgrade

Operate environment

Altitude;0~5000m;Relative humidity:0~95%;Temperature:-10°C~+50°C;Wind speed:max 15m/s

Volume/Weight

160mm(L)×150mm(W)×145mm(H) / 2.75kg



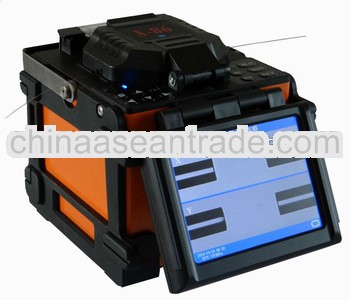

Appearance:    high definition splicing machine





Advantages:  high definition splicing machine

   High definition 5.7’colorful LCD display.
    Metro style graphics menu, concise and intuitive interface, easy to operate.
    Original fiber fixture design, simple and convenient operation, even beginner can easily use.
  Rubber armor, specially designed, giving the body a full range of protection, the machine structure is strong, stable, vibration resistance and impact resistance are improved greatly.
  8800mAh large capacity battery can support 220 times splicing and heating; The battery is displayed in real time; Support line charge and a charge status indicator.
Activities in the battery compartment design, easy-swap the battery, replace.



Warranty:



The machine guarantees for 1 year.



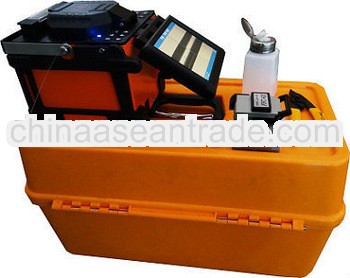

Standard Configuration:



No.nametypequantity
1Main machineX-861
2Fiber cleaverX-50 or 521
3ElectrodeX-121 pair
4Fiber stripperCFS-21
5Alcohol bottle 1
6Cooling holder 1
7Power cord
 1
8AdapatorST-C-0751
9Carrying case

1

10
Rubber suction bulb

1

11
keys

1

12
straps

1

13Maunal guide

1








Carrying case can protect the splicing machine to keep away

from vibration and impact damage.

In construction, the case can be used as work platform.



Delivery:



3 days after receiving the payment.



Products ready for shipment......







Factory:





Operate environment



Parameter calibration experiments:



High voltage arcing circuit environment parameter calibration experiments have been

carried out in Shanghai, Xi'an, Lanzhou, Xining, Lhasa, 0 to 3600 m altitude.

The machines can be intelligent perception of the change of the outside temperature,

pressure and other environmental parameters, automatically adjusts discharge

parameters to produce a stable arc.



Temperature and humidity experiments:





Exhibition:



The 15th China International Optoelectronic Exposition (CIOE)

(Held in Shenzhen, in September,2013)



The 21st China International Broadcasting Network Exhibition

 (Held in Beijing, China, in March, 2013)
