8ton round slings

Click for original picture
Fob Price: 2.00 USD/
MOQ: 10
Payment Terms: delivery withindays since payment
Location: China
  Mr. Galen Liu    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:aa

Product detail:

EA-A ROUND SLINGS



Round sling has the maximum load up to 3000T, effective length up to 100m,safety factor adopted is normally 7:1, 6:1.

Round sling is made of high tension industrial yarn (100% PES), the strands inside are as a from of endless cycle.The

outside sleeve is also made of 100%PES, not for the loading, but to protect the stands inside.

Round slings are the ideal solution for the safe lifting of loads, whether this is to be at your works, for loading and

unloading or for using at a building site. The round slings will protect items being lifted. If the sling is damaged badly,

 the outside sleeve is breakage, and the inside strands will go out, so the sling can not use any more. Their sturdy

core and a covering layer will guarantee a long serviceable life, even when in continuous use, round slings are also

repairable.



Instructions for Round Slings



When selecting a sling to carry a given load, it is important to consider the angle at which the sling is to be used. As an

example, one sling in a basket hitch or two slings attached to one crane hook are different applications involving different

sling angles. The degree of the angle will determine how much the capacity will be reduced. Take the angle between the

sling leg and the horizontal, then multiply the sling's rating by the factor provided in the accompanying table.

The capacity of a sling will be reduced as the angle from the horizontal is reduced. In the example below, you will see how

the 1,000 pound capacity of a sling used in a vertical basket hitch is reduced.



Technical Parameters





Caution



1)Do not use a damaged sling
(2)In the process of lifting, Do not twist slings
(3)Do not let the slings tied in a knot
(4)Avoid the overload of work
(5)When moving slings, do not pull slings
(7)Each slings before use must be carefully checked
(8)Polyester has the function of resistance to inorganic acids,But Easy to damage of organic acids
(9)If you use the slings in high temperature or chemical pollution conditions,Should seek advice from suppliers

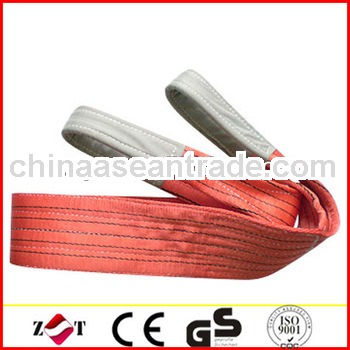

Products Pictures





                                                              red one







                   orange one                                                  light blue



                                                            using place





We have our own factory,so we can provide the products according to your

requirements!



Any questions,feel free to contact us.We will reply you soon! within 24 hours!
