Application

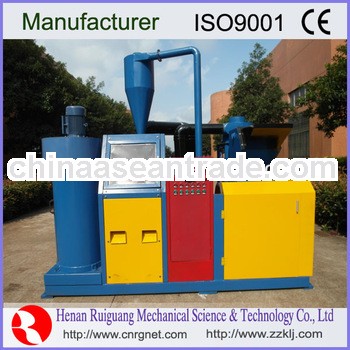

Ruiguang QJF series cable granulators are specially designedfor recycling copper cable and wire scrap. This cable granulator is featured by environmental
protection, cost-effectiveness and reliable performance. As an advanced method of recycling copper, ourcopper granulator is welcomed worldwide,
especially in south America, Europe andsouth Africa and etc. Besides, the whole
recycling process adopts intelligent management which is accurate, afe and efficient.
Separation methods of copper wire crusher
Dry-type copper wire recycling machine: this machine adopts a separation method without adding water during separating and selecting process. And this machine uses the machine with an environment-friendly separation method, such as air flow separator, air shaking table or electrostatic separator. The main technological process
is: Crushing-air flow separating and selecting-( electrostatic separation ) - dust collection.
Equipment Characteristics:
1. This equipment uses our self-owned triple dust collecting unit ( triple dust collector), including three stages, cyclone, cloth-bag and cleaner dust collectors, which can effectively solve the dust pollution problems
2. The equipment uses dry crushing and pulverizing to process the waste cable and wire into metal and nonmetal mixture like plastic. Then the metal and plastic are separated through high pressure electrostatic separator.
3. The metal and plastic separation and recycling can be completed under multi-computer controlled one-time batch-feeding for crushing and automotive conveying, sound insulation technology and cooling system.
4. The machines are very easy to assemble and disassemble.
Main equipments and functions:
(1) No.1 cutting machine, it needs the operator to put the waste wires into machine. Although this step must be operated manually, it has the features like easy to operate and high output.
(2) Magnetic conveyer: it moves the waste wire from No.1 cutting machine to No.2 machine, and the magnet is equipped at the top of the it; when the No.2 pulverizer is full, the conveyer will stop working till the No.2 machine gets right.
(3) No.2 pulverizer: it is a device which is used for crushing the 2~3cm wire from No.1 pulverizer. This machine can crush the foreign body on external surface and separate the external rubber with copper completely. Additionally, the filtering network fixed at the bottom of machine is used for controlling the processing speed and output for different wires, and it is suitable for processing the cable from thinner one like hair to thicker one like power cable when it change the filter network. The pulverizing chamber can be operated by oil pressure system, what is more, it is easier to repair and change the blade.
(4) Blower- move the crushed materials from No.2 pulverizer to sorter by wind wave and pressure.
(5) Sorter—as a core part, it is used to separate the copper and external rubber, though the structure is complex, it is easy to operate.
(6) Cloth dust collector—this device is used for collecting the dust produced in sorter through blower, there are 12 filtration woven belts whose material is imported diffusing tissue which can recycle the dust effectively, and so guarantee the cleanliness of the air of surrounding environment .
(7) Air rock (Rotary valve)—Lie in the lower extreme of dust collector, for discharging the inside dust effectively, operate the rotary valve termly.
(8) Screw conveyer—the dust in dust collector is recycled by rotary valve and discharged outside.
(9) Control cabinet—as a control device, it is used for adjusting all the machines and equipped with emergency stop and timing function. The working principle is using the PLC to control each part of the machine with strong controllability.
Tehcnical parameters
Model | QJF-400A | QJF-400B | QJF-600A | QJF-600B | QJF-800 | QJF-1000 |
Processing diameter (mm) | 0.5-20 | <20 | 0.5-20 | 0.5-20 | 0.3-20 | 0.5-20 |
Dimension (L×W×H) | 3.4×2.1×2.15 | 1.6x1.5x1.7 | 4.2x2x2.85 | 4.2x2x2.85 | 3.5×2.3×2.8 | 10x8.7x3.1 |
Motor voltage (v) | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
Production capacity (kg/h) | 200-400 | 100-200 | 350-500 | 300-500 | 600-800 | 800--1000 |
Please send your inquiry with details such as cable type,diameter,insulation thickness and so on in advance to help facilitate your request.
