Product detail:

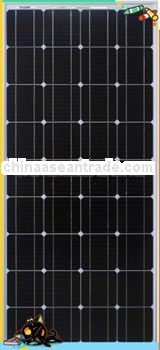

Solar power generator
Hetech energy CO.,Ltd is a manufacturer of high quality mono- and multi-crystalline
silicon PV modules in East China. We have the annual capacity of 200MW by
April, 2010. Our 860 research staff and workers dedicate themselves to providing
inexhaustible and renewable energy to human being.
Electrical Characteristics
PARAMETER | |
|
|
Related power | 75w |
Voc | 21.53v |
Vmp | 17.50V |
Short circuit current (Isc) | 4.61A |
Working current (Imp) | 4.29A |
Output Tolerance | 0---+3% |
Temperate coefficient of Isc | 0.04 % /°c |
Temperate coefficient of Voc | -0.32 % /°C |
Temperate coefficient of power Pm | -0.35%/°C |
Temperature range | -40°C +80°C |
Frame | Heavy duty aluminum |
Kind of connection | waterproof junction box, can be customized |
Guarantee of power | 90% with in 10 years 80% with in 25 years |
Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
SLA Battery Voltage | 24v-216v |
Size | 1000*510*25mm |
Photo:
Earnest Production:
Packaging:
Home system:
Any questions, Please have no hesitate to contact with us !
