Product detail:

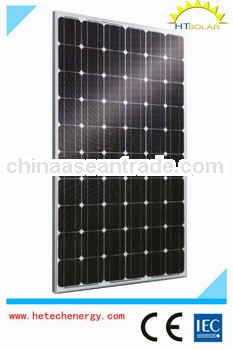

Solar power panels
We supply Solar power panels with competitive price
Electrical Performance
| Module Type | HT-M160W-60P | |
| Maximum Power | Pm(W) | 160 |
| Tolerance | (%) | -3 to +3 |
| Open Circuit Voltage | Voc(V) | 37.76 |
| Short Circuit Current | Isc(A) | 5.60 |
| Maximum Power Voltage | Vm(V) | 30.70 |
| Maximum Power Current | Im(A) | 5.21 |
| Module Efficiency | % | 14.89 |
| Cell Efficiency | % | 17.95 |
Working Conditions & Parameters
| Cell Type | (mm) | 125*125(Monocrystallne silicon) |
| NO. of cells | (Pcs) | 60 |
| Maximum System Voltage | (V) | DC1000 |
| Temp. Coeff. of VOC | (%°c) | -0.32 |
| Temp. Coeff. of ISC | (%°c) | 0.04 |
| Temp. Coeff. of Pm | (%°c) | -0.35 |
| Operating Temperature | °c | -40 to 85 |
| Nominal Operating Cell Temperature | °c | 45±2 |
| Max. Series Fuse | (A) | 10 |
| STC (Stand Test Conditions) | 1000W/m² AM=1.5 T=25°c | |
