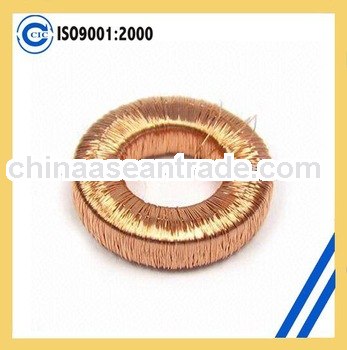

Permalloy Core :
| The core with winding(800 turns 38AWG) could meet the below requirement . | ||||||||||||||||
| Test condition Iin=5mA F=50Hz Rl=1K ohm | ||||||||||||||||
| Variety Ratio of output voltage≤15% at -35 or 80 to that at ambient temperatuer 25. | ||||||||||||||||
| Over leakage charactersticsVariety ratio of Vo≤10% before toafter magnetization | ||||||||||||||||
| at DC 20AT 10mS (3 times). | ||||||||||||||||
| Material list | ||||||||||||||||
| NO. | Component | Material | Manufacture | Remark | ||||||||||||
| 1 | Core ring | 1J85 | ADVANCEDTECHONLOGYANDMATERIALS CO.,LTD. | |||||||||||||
| 2 | Case | PBT RG301 | GUANGZHOU KINGFA SCIENCE & TECHNOLOGY CO.,LTD. | E171666 | ||||||||||||
| Customer Evaluation | Remark: Inspection standard should be | |||||||||||||||
| according to ANSI/ASQZ1.4. | ||||||||||||||||
