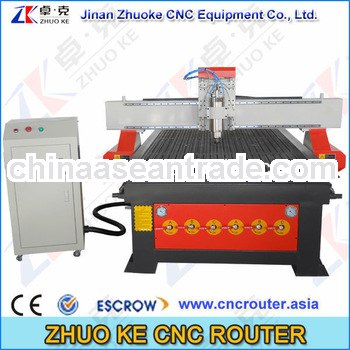

Hobby China CNC Carving Machine for Wood ZKM-1325A

Brand:aa

Product detail:

Hobby China CNC Carving Machine for Wood  ZKM-1325A





Main introduction:



1.Square tube iron lathe bed, cast iron Longmen structure(T-shape). Aviation aluminum working mesa(1.8mm)

2.3-axis(XYZ) use 86BYG-450A step motor(Jiangsu Changzhou) and Double exchange transformer (60v500w) power supply, 4 driver motor is MA860H (Shenzhen Leadshine)

3.XY-axis use Hiwin linear guideway rack ransmission, linear guideway diameter is 20mm (Taiwan Hiwin or Yintai), Z-axis ball screw (1605) linear guideway transmission.
4.Frequency transformer is Shenzhen Sifang(5.5KW), water-cooled brushless frequency-change spindle.(5.5kw)

5.3-axis motor line is CNC High soft lines(4*0.75), spindle line is shielding high soft line(3*1.5)
6.The processing precision is 0.05mm, diagonal error is 1mm
7.Design software is ARTCAM or TYPE3, , control system isNcstudio

8.Stainless steel water tank and Z-axis working area is 400mm
