Product Description

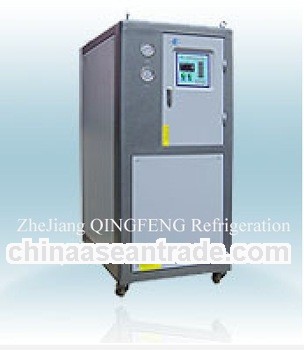

Brand New Profile Oxidation Directly Cooled High Efficient Flooded Screw Style Chiller
Basic design parameter
It adopts imported brand of compressor from Europe equippted with QINGFENG patent high-efficient anti-corrosion evaporator and high efficient anti-corrosion condenser. Moreover, automatic computer control of touched screen operation makes COP nver 5.34
It is unnecessarily to install plate heat exchanger, freezing water pump and water tank. The direct cooing method can save at least 37% electric cost than indirectly cooling method.
When temperature difference of frozen liquild is controlled within 2° C, the temperature of oxidized frozen liquild is kept uniform by special frozen technical, which ensure the products filam and color average, avoid instability quality.
It can also supply free charge 55° C hot water, In winter when the ambient temperature is below 12° C, chiller is power consumption can be zero.
Match equipment
Water cooling chiller shall be used with the cooling tower, no matter the ambient temperature is the refrigerantion efficiency could remain the best, this machine is in elegant appearance by using electrostatic spray powder shell and European design.
Technical parameters of QLKxxSM/R Series High Efficient Flooded Type Screw Style Chiller
Model | QLK | |||||||||||||
150SM/R | 170SM/R | 190SM/R | 220SM/R | 250SM/R | 300SM/R | 360SM/R | 420SM/R | 470SM/R | 530SM/R | 600SM/R | ||||
Cooling capacity | Kw | 149.6 | 171 | 185 | 224.9 | 250.2 | 301.7 | 357.9 | 420.2 | 472.7 | 530.3 | 596 | ||
Kcal/h×104 | 12.87 | 14.71 | 15.91 | 19.34 | 21.52 | 25.95 | 30.78 | 36.14 | 40.65 | 45.61 | 51.26 | |||
Heat Recovery volume Kcal/h×104 | 3.86 | 4.41 | 4.77 | 5.80 | 6.46 | 7.78 | 9.23 | 10.84 | 12.20 | 13.68 | 15.38 | |||
COP | 5.38 | 5.34 | 5.35 | 5.45 | 5.50 | 5.51 | 5.48 | 5.56 | 5.61 | 5.61 | 5.61 | |||
Input Power | 3PH- 380V/50HZ | |||||||||||||
Compressor | mode | Semi-closed screw style compressor | ||||||||||||
Input power | 27.8 | 32.0 | 34.6 | 41.3 | 45.5 | 54.8 | 65.3 | 75.6 | 84.3 | 94.5 | 106.2 | |||
Rated load current | 46.4 | 55.3 | 59.0 | 71.1 | 77.7 | 100.7 | 118.0 | 132.9 | 141.9 | 156.2 | 182.8 | |||
Matching wire | 25 | 25 | 25 | 35 | 35 | 50 | 50 | 70 | 70 | 95 | 95 | |||
Way to unload | 0,25,50,75,100 | |||||||||||||
refrigerant | R22 | |||||||||||||
Condenser | mode | High efficient external screwed shell and tube | ||||||||||||
water flow | 30.4 | 34.8 | 37.6 | 45.6 | 50.7 | 61.1 | 72.5 | 85.0 | 95.5 | 107.1 | 120.4 | |||
Hydraulic pressure | 56.0 | 58.0 | 58.0 | 60.0 | 61.0 | 63.0 | 62.0 | 65.0 | 66.0 | 65.0 | 68.0 | |||
water temperature | Inlet water 30°C,outlet water 35°C | |||||||||||||
Eveporator | Mode | High efficient flooded type | ||||||||||||
Liquid flow | 25.6 | 29.3 | 31.7 | 38.6 | 42.9 | 51.7 | 61.4 | 72.0 | 81.0 | 90.9 | 102.2 | |||
Hydraulic pressure | 56.0 | 57.0 | 56.0 | 59.0 | 60.0 | 61.0 | 65.0 | 63.0 | 61.0 | 62.0 | 63.0 | |||
in&outlet temp | Freezing inlet liquid 12°C,Freezing outlet liquid 7°C | |||||||||||||
Heat recovery | mode | High efficient external screwed shell and tube | ||||||||||||
Hot water flow | 7.7 | 8.8 | 9.5 | 11.6 | 12.9 | 15.5 | 18.4 | 21.6 | 24.3 | 27.3 | 30.7 | |||
Throttle methods | Electronnic expansion valve | |||||||||||||
Safety protection | Water pump interlock protection,acid pump interlock protection,leakage protection,overload protection,overpressure and anti-phase protection,refrigerant abnormality protection,compressor over temperature protection,hyperpressure valve protection,oil pressure protection,and lack of water protection,etc. | |||||||||||||
Pipe | Cooling water in&outlet diameter | DN65 | DN65 | DN65 | DN65 | DN80 | DN80 | DN100 | DN100 | DN100 | DN100 | DN125 | ||
Frozen water in&outlet diameter | DN65 | DN65 | DN65 | DN65 | DN65 | DN100 | DN100 | DN100 | DN100 | DN100 | DN100 | |||
Hot water in&outlet diameter | DN50 | DN50 | DN50 | DN50 | DN50 | DN50 | DN50 | DN50 | DN50 | DN50 | DN65 | |||
Noise(dB) | 55.6 | 56.5 | 56.5 | 60.2 | 60.4 | 60.8 | 61.4 | 63.8 | 64.8 | 65.7 | 66.7 | |||
Weight(kg) | 1715 | 1734 | 1784 | 2130 | 2233 | 2843 | 2729 | 3692 | 3877 | 4068 | 4260 | |||
Overall size | 2400 | 2400 | 2400 | 2400 | 2400 | 2800 | 2800 | 3400 | 3400 | 3400 | 3600 | |||
1000 | 1000 | 1000 | 1000 | 1000 | 1060 | 1060 | 1200 | 1200 | 1200 | 1220 | ||||
1780 | 1780 | 1780 | 1780 | 1780 | 1840 | 1840 | 2100 | 2100 | 2100 | 2160 | ||||
