Brand:aa
Product detail:

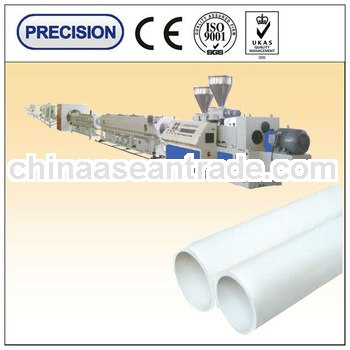

Main technical parameter of plastic pvc pipe machine:
| Model | PVC-630 |
| Pipe range(mm) | 450,500,560,630 |
| Extruder | SJSZ-92/188 |
| Output | 400-450kg/h |
| Total installed power | 220kw |
| Actual power | 300kw |
Technical parameter of plastic pvc pipe machine:
| No | Machine composition | Quantity |
| 1 | High speed mixing unit | 1 suit |
| 2 | Spring feeder | 1 set |
| 3 | Twin screw extruder | 1 set |
| 4 | Electrical control system(PLC automatic control) | 1 set |
| 5 | Die head(mm):Ø450-630 | 1 set |
| 6 | Vacuum calibration tank | 1 set |
| 7 | Spraying water tank | 1 set |
| 8 | Printer | 1 set |
| 9 | Haul-off machine | 1 set |
| 10 | Cutting machine | 1 set |
| 11 | Tilter | 1 set |
| 12 | Crusher | 1 set |
| 13 | Spare parts | 1 suits |
| 14 | After-sale service | customize |
High speed unit: it is used in mixing,compounding,drying coloring and other processing of PVC,PP,PE etc.
Spring feer: It is mainly used in PVC pipe production lines, traction and cutting machine installed in the middle of the film driven by frequency conversion motor rotating film and film, sheet film and the film they were controlled by two point shot PVC pipe with the relative tilt angle, with the PVC pipe extrusion, the sheet membrane surface evenly wound on PVC pipe, wrapped by the film in prison, and then cut pipes, thus forming: tube - packaging & mdash
Twin screw extruder: Unique innovated technology avoids pre-drying and crystallization process which helps saving about 30% energy than regular single screw PET extruder and can process 100% recycled material
Electrical control system: Siemens PLC, ABB converter, Omron temperature controller. The entire production line adopts the originally imported new control system of PLC programmable computer, guaranteed highly and steadily reliable controls of the production line.
Die head: Die headsof helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.
Vacuum calibration tank: The metal pips (inside and outside) use stainless steel pipes. With plastic adjustable sprayer and various internal pipes for adjusting the direction.
Spraying water tank: Intensive cooling of the pipe thanks to optimized positioning of the bayonet-type spray nozzles. Baths and outer pipe work made from stainless steel
Printer: This device adopts stainless steel case and closed keyboard which make the whole machine water proof and dust proof. There is Clock system inside the device which can make the date and time printing in real time.
Haul-off machine: The hauling machine adopts anti abrasion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan
Cutting machine: New generation auto dust-free cutting blade realizes smooth cutting secant, high precision and low noise
Tilter: we can produce according to customer requirement.
Crusher: These machines help to reduce the volume of plastic waste, make it usable for reproduction of plastic products. Almost every industry makes use of plastic crushers to save cost and resources.
Our Company:
Our certificates:
Our suppliers:
How to own plastic pvc pipe machine?
1. Price
Please offer the diameters and SDR you require, so we can equip extruders and moulds for you and offer the most reasonable price.
2. Validity of Price
Three month
3. Payment Terms
40% contract value (T/T) to our bank as deposit. 60% contract value (T/T) to our bank before delivery
