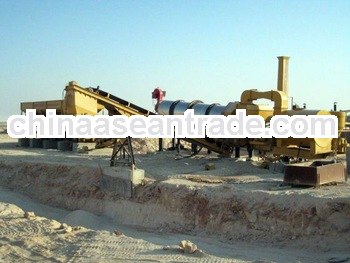

CAP40 Drum Asphalt Mixing Plant
Product Features
Cold aggregate supply system
Components:Four aggregate belt feeders, a set of aggregate belt conveyer;
Specifications
Bin cubage: 4×4m³;The bin width 2.6m Loading height: 2.78m Bin vibrator: 0.25kw;
Ring belt width 500mm; Motor power: 4×1.5kw(electromagnetic timing);
Aggregate belt width 500mm; Motor power: 4kw
Characteristic
Inside bin equipped with filtering net, the feeder motor adopts electromagnetic timing; convenient for transportation;
Middle filter
Type Oblique flow automatically;
Characteristic: The middle filter has no vibration, little dust can overflow; avoid the waste material entering into the drying drum and elevator, reduce the heat loss, saving energy; Avoid big stone material jam.
Drying drum
Components and specification:
(1)Dryer drum
Drum diameter: 1.2m; Drum length 5m; Motor power: 11kW
(2)Elevator Single row of chain; Elevator motor power 5.5 kW
(3)Dust catcher Double drum cyclone dust catcher
Motor power of wind drawing fan 7.5 kW
(4)Mixture storage silo
Cubage 2.5 M3, below part equipped with material inducing device; discharging outlet equipped with temperature sensor; the discharging door structure adopts hydraulic cylinder, hydraulic pump and so on; Motor power 2.2kW. Mixture discharging height 2.5 M
Characteristics
The drying drum is driven by gear-tooth joggle with reliable capability; elevator board chain material 40Cr, hanging hopper material is 65Mn.
Asphalt supply system
One 10 M3 asphalt tank; one set of asphalt pump and one set of asphalt pipelines;
The wind drawing fan motor power 4kw;
Electromagnetism timing motor power 2.2kW;
Characteristic
The asphalt tank burning coal or firewood, using circle hot wind pipeline to heat the asphalt.
Electric control system
The figure dimension 2.2x2.2x2.5m; Copy container structure, the walls, door and windows are made of colorized steel plate. Pleasing shape, good seal; easy to hoist and transport.
Box type control cabinet, main electric parts are Zhengtai, Schneider, which has interlock and two-grade protection; On the operation panel equipped with manual operation device, digital indicator for main motor, mixture temperature, cold aggregate, fuel and asphalt.
