Brand:aa
Product detail:
5000-30000Litres Water Bowser Water Tanker Water Truck For Sale
Vehicle Features:
1. SINOTRUCK High Quality Chassis, 4X2 Drive, LHD/RHD
2.Self suction, self discharge function, front flushes sprinkles, side spurts, post positioned work table.
3. High-pressured Sprinkler, spraying of water to be possible to adjust columnar and the fog shape.
4. Optional fire pump and fire-fighting accessories.
5. Especially suitable for the municipal administration environmental sanitation department, the large-scale industry and mining enterprise.
6. 3C ISO BV FORM E approved, accept customes' OEM customized
Vehicle Technical Parameters:
Product | SINOTRUCK 10000-15000Litres Water truck/bowser/tanker | |
Chassis | Brand | SINOTRUCK |
Chassis model | ZZ1164G4715C1 | |
Drive type | 4×2, LHD/RHD | |
Tire | 10.00-20 | |
Tire No. | 6+1(spare) | |
Braking System | Air braking, cam drum braking | |
Clutch | Uniwafer, dry clutch, hydraulic remote control | |
Transmission | 5 forward gear,1 reverse gear,manual mechanical type | |
Engine | Model | YC6J190-30 |
Horse Power(hp) | 190 | |
Displacement(cc)/Power(kw) | 6500/140 | |
Emission | Euro 3 | |
Main Parameters | Overall dimension (L*W*H/mm) | 8100X2480X2940 |
Wheelbase(mm) | 4700 | |
Axles No. | 2 | |
GVW(kg) | 16000 | |
Curb Weight(kg) | 7870 | |
Leaf spring No. | 11/10+10 | |
Approaching/Departure Angle(°) | 21/19 | |
Front/Rear trace(mm) | 2020/1860 | |
Front/Rear suspension(mm) | 1250/2150 | |
Max speed(km/h) | 99 | |
Front/Rear Axle Load(kg) | 4500/10000 | |
Cab | long headed cabin; Air-condition optional | |
Tank Capacity | 10000~15000 Litres | |
Water System Performance | Water Pump | Self-sucking centrifugal pump |
Water Width | ≥16m | |
Water Monitor Range | ≥28m | |
Vertical Suction Range | ≥7m | |
Pressure | 250-450MPa | |
Watering Speed | 0.2-2 L/sq.m. | |
Pump Lift | 90m | |
Priming Time | <5min | |
Flow | 60 cbm/h | |

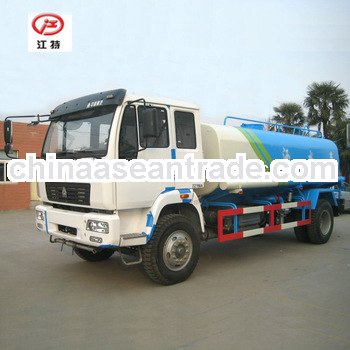

Water Tank truck Images:
Note:
We are a set design ,production into one professional manufacturer of multifunction water trucks in China, we can provide our customers various configurations trucks with different prices and best quality.
1. At present Our Truck with Euro 2 and Euro 3 Emission Standard;Drive model:4*2,6*4,8*4;
Chassis Brand : Dongfeng, FAW, Auman, Shacman, Sinotruck, North Benz( Bei Ben), etc.
2. Cab: Flat-head with one sleeper(optional), comfortable design, rated passengers:3, with air condition;
Steering control: Left hand drive /Right hand drive optional;
3. Engine model: Dongfeng Chaochai(95HP-120HP),Yuchai(140HP-240HP),Cummins(140HP-260HP),Weichai(266HP-336HP).
4. Loading weight(tank capacity): 5T(CBM), 8T(CBM), 10T(CBM), 12T(CBM), 15T(CBM), 20T(CBM), 25T(CBM), 30T(CBM).
5. Front/Side/Rear sprinkler, equip with High-Power water cannon (360° rotatable), adjust water to high or low(spray like columnar,vaporific,drizzle).
6. Adopt of chinese famous brand“zhejiang weilong” dedicated water cannon( introduction of Italy technology), advanced and reasonable design, fast and easy to use. Moreover, the cannon with high-pressure, long suction head and long serving life feature. The sale volume is always top for a decade in china domestic market, with 93% market share.
Water Truck Tools and Accessories:
Water Truck Part Series:
Factory Show:
Customer Visit
Workshop Equipments
Company Certificates
Contact Information
If you have any unclear with our trucks, please just let me know,we are always at your service.
Sincerely welcome to contact with us and visit our factory at anytime.
