Brand:aa
Product detail:

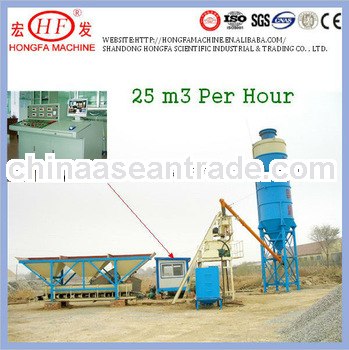

High Quality HZS25 Concrete Mixing Plant In China
1.Brief introduction
The concrete mixing plant of this series has intellectually automatic function. It belongs to intermittent forced mixing station. The customers are satisfactory with its characteristics like compact structure, flexible arrangement, less investment,and convenient assembly and disassembly. It can use many manners of combining and charging according to customers’ needs. It can produce dry-rigid,half dry-rigid ,plastic ,and every distribution ratio concrete and use the mixing technology of wrapping-stone mode which can improve the quality of concrete greatly. It’s the ideal equipment for constructions of middle-small buildings,roads and bridges, the tube piles and cement precast factories.
2.Technical parameter
Model | HZS25 |
Max theory productivity(m3/h) | 25 |
Mixer | JS500 |
Storage bucket capacity(m3) | 3×2.4 |
Maximum size of aggregate(mm) | 60/80 |
Discharge height(m) | 1.7-3.8 |
Charge height(m) | 2.9 |
Aggregate measuring accuracy(%) | ±2 |
Cement measuring accuracy(%) | ±1 |
Fly ash measuring accuracy(%) | ±1 |
water measuring accuracy(%) | ±1 |
additive measuring accuracy(%) | ±1 |
Power(kw) | 35 |
Total weight(kg) | 14000 |
High Quality HZS25 Concrete Mixing Plant In China
Our Factory and Workshop
Customer Abroad
ISO9001/CE/SGS Certificate
