Steel laser cutting machine

Click for original picture
Max. cutting speed: 20m/min
Max. positioning speed: 120m/min
Continuous working time: 24 Hours
Fob Price: Discuss personally
Port: wuhan
Supply Ability: 30
Payment Terms: delivery withindays since payment
Location: China Hubei
  lisa li    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !
Product Detail


Description:steel Fiberlaser cutting machine adopts IPG/ROGIN fiber laser source, HIWIN linear guide drive, Presitec/Ray Tools laser cutting head, advanced control system and all of the key parts are originally imported. With Gantry CNC machine and high strength welding body which is precision machining and high temperature annealing by large CNC milling machine. The special processed aluminum beam is with high strength, light weight and good rigidity.

Origin:China Hebei




Payment Terms:T/T

Supply Ablility:30Sets

Supply Time:Month

Delivery Time:2019-07-24

Packaging Details:Wooden Cases

Product detail: GS-LFD3015 series Carton steel Fiberlaser cutting machine adopts IPG/ROGIN fiber laser sourceHIWIN linear guide drive, Presitec/Ray Tools laser cutting head, advanced control system and all of the key parts are originally imported. With Gantry CNC machine and high strength welding body which is precision machining and high temperature annealing by large CNC milling machine. The special processed aluminum beam is with high strength, light weight and good rigidity.


Parameters  CNC metal sheet fiber laser cutting machine



Output power of laser source


Cutting area (L*W)

3000mm × 1500mm

Z axle stroke

150 mm

Max. cutting speed


Max. positioning speed


Platform size/Max height of feeding material

4250x2500mm/more than 120mm


water cooling

Laser wavelength


Min. cutting gap


Positioning accuracy of X, Y and Z axles

±0.03 mm

Repeated positioning accuracy of X, Y and Z axles

±0.02 mm

Thickness of cutting material
(according to material)


Drive model

Imported servo motor





Continuous working time

24 Hours

Machine weight

About 2950Kgs

Outer dimension

4300mm x 2280mm x 1500mm

Total protection level of power supply



Laser Source Power/Cutting ability

Laser Source Power/Cutting ability CS(mm) SS(mm) Alumium(mm) Brass(mm)
500W Max cutting thickness 8 4 2 2
Max processing thickness 5 3
700W Max cutting thickness 10 6 3 3
Max processing thickness 6 5
1000W Max cutting thickness 14 8 4 4
Max processing thickness 8 6
1500W Max cutting thickness 16 10 6 5
Max processing thickness 12 8
2000W Max cutting thickness 20 12 8 6
Max processing thickness 16 10
2500W Max cutting thickness 22 12 10 8
Max processing thickness 20 10
3000W Max cutting thickness 25 14 12 8
Max processing thickness 22 12


Advantages of Carton steel Fiber laser cutting machine:

1. Low cost: 30% photo-electric conversion efficiencylow power consumption.

2. Free maintenance: without reflective lenses, no need to adjust laser route.

3. High speed: with IPG/ROFIN laser source, hing speed running.

4. High cutting quality: less deformation, flat and elegant surface.

5. High precision: Adopt high precision drive structure with imported service motor, ±0.03mm positioning precision.

6. Strong software: any shape, easy and convenient operation.

7. Compacted structure, small occupied area.

8. Environmental protection, longer lifetime.




The same product


Our company

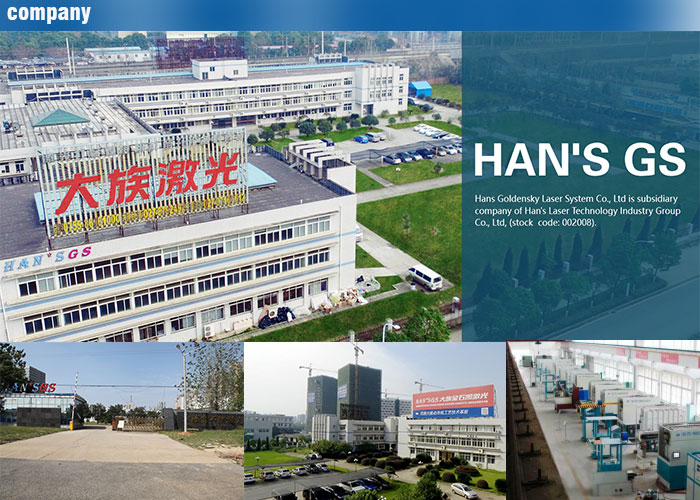

View of Hans GS Industry Park

1.Top supplier of high power laser generator and laser complete system in China
2.Holding subsidiary of Hans Laser in Shenzhen
3.High tech enterprise of Optic Valley under government support
4.Registered capital 80 million, 125 employee
5.Total sales amount of 98 million in 2012,profit of 16 million
accumulated assets 150 million, asset-liability ratio 30%,50% increasing speed in the last three years


Honor and Certificate

1.Undertake company of National High tech industry
2.National Torque program
3.National Electric information developing fun supporting company
4.National Innovation fun supporting company
5.High tech enterprise of Wuhan, Hubei Province
6.Research center of high tech enterprise of Wuhan
7.Undertake company of technology program of Wuhan
