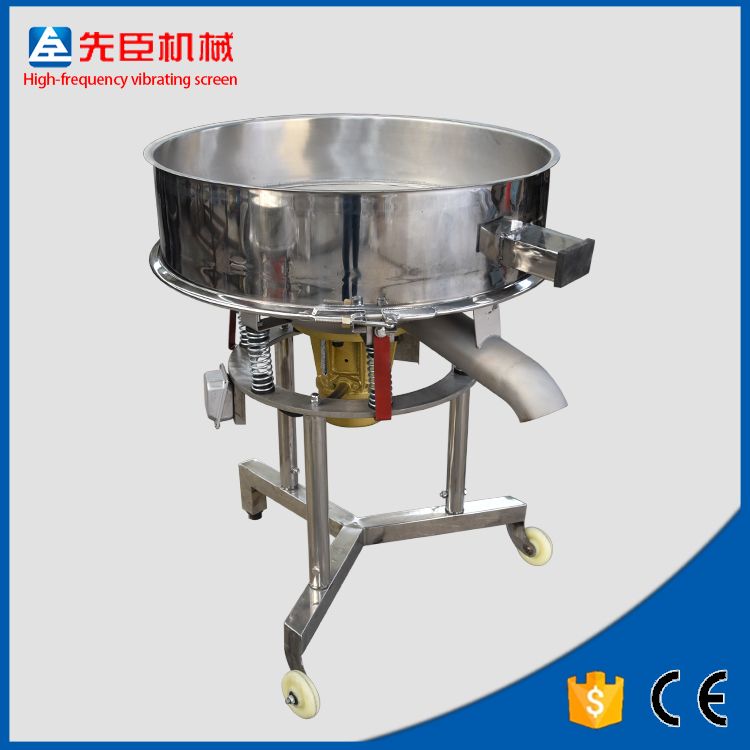

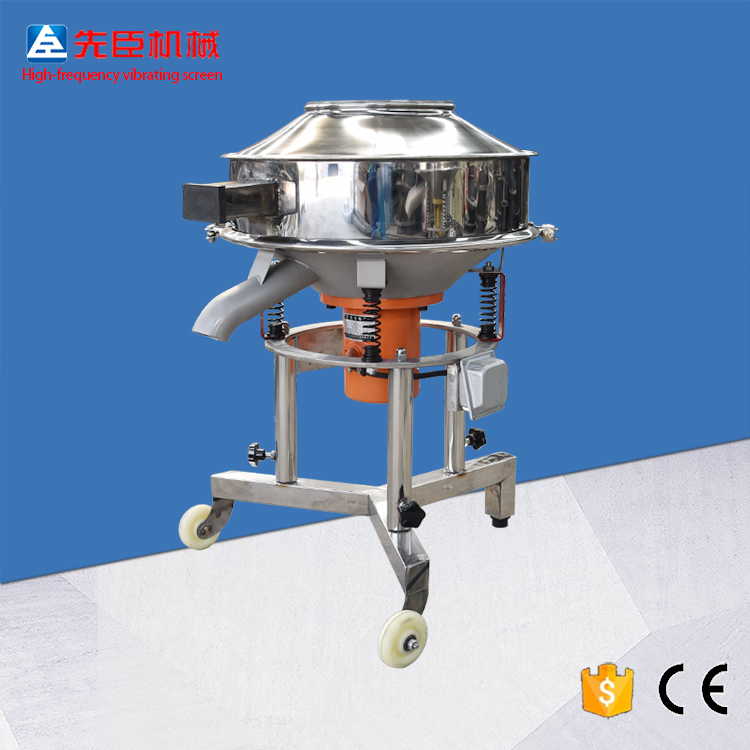

vibration screen filter

Brand:Xianchen

Description:Xinxiang Xianchen vibration machinery co., LTD sets professional design, development and manufacturing of vibration machinery in one. Inheritance of leading technology, continuous innovation, we provide customized equipment and restructuring needs with advanced technological level and large-scale production capacity. Your need is our own requirements. We provide personalized equipment for you with the spirit of good faith , fair price, and service-oriented.

Model:XCG800

MOQ:1Sets

FOB:perSets880--4221USD

Port:Qingdao,Shanghai

Payment Terms:T/T

Supply Ablility:1Sets

Supply Time:Day

Delivery Time:2017-06-30

Packaging Details:Outer packing is plywood case , which is up to the international standards. Inner packing is moisture-proof and water-proof membrane. All of package are wrapped by 0.55mm steel belt to further strengthen .

Product detail: Brief Introduction:
Xianchen vibration screen filter is widely used in dry, wet sieving, grading and dewatering of various materials in ceramics, chemical industry, brick making, food, pharmacy, chemical fertilizer and papermaking. For fine-grading operations in the grinding process of the concentrator, under the condition of the appropriate feed concentration, feed size (1-200 mesh size), and the difference between particle size and feed size less than 30% of the high-frequency screen, the screening efficiency is more than 70%. Due to the high-efficiency, it can greatly reduce the circulating load and the qualified grain size content on the sieve, thereby improving the processing capacity of the sifter (generally being improved 5-10 percentage points).

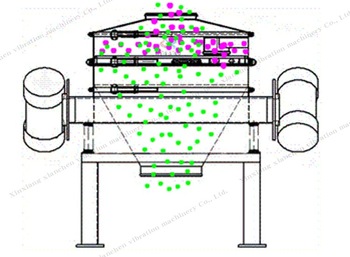

The sieving process controls the particle size strictly under the sieve, and eliminates the adverse effect of the coarse ore on the fine ore; slurry, under high-frequency vibration of small amplitude of the screen surface, has the function of stratification according to density, high-density small particles easy to sink to the screen surface and through the screen, which can significantly improve the quality of the material under the screen.

Model	Power	Sieve diameter	Maximum exciting power
XCG-450	0.25KW-0.55KW	420mm	3000N
XCG-600	0.55KW-0.75KW	560mm	5000N
XCG-800	0.75KW-1.50KW	760mm	8000N
XCG-1000	1.1KW-1.5KW	1000mm	10000N
XCG-1200	1.5KW-2.3KW	1130mm	15000N

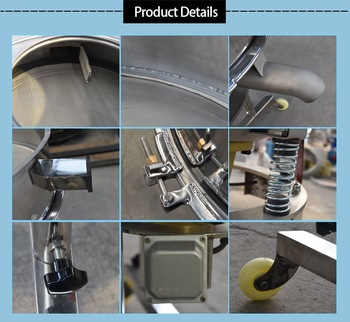

Detailed:
