200kg hotel washer extractor

Click for original picture
Washing capacity: 200kg
Washing speed: 25rpm
Machine weight: 6500kg
Fob Price: Discuss personally
Port: shanghai port
Supply Ability: 1000
Payment Terms: delivery withindays since payment
Location: China Jiangsu
  elina    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:Crystal

Description:Place of Origin: Jiangsu, China (Mainland) Brand Name: Crystal Model Number: XGQ Description: Industrial Laundry Machine Voltage: 220,380,400,415,440V Capacity:15kg,20kg,30kg,50kg,70kg,100kg,150kg,200kg Usage: Hotel,Hospital,School,factory Heating: Electric,Steam Material: Stainless steel 304 Feature: Critical Cleaning / Residue Free Installation: 100% Free standing Certificate: UK Approved CE certification & ISO9001

Origin:China Jiangsu

Model:XGQ

FOB:perSets1500--12000USD

Port:shanghai port

Payment Terms:T/T

Supply Ablility:1000Sets

Supply Time:Quarter

Product detail:

Main Parameter
Specification Unit XGQ-15F XGQ-20F XGQ-30F XGQ-50F XGQ-70F XGQ-100F XGQ-150F XGQ-200F
Washing capacity kg 15 20 30 50 70 100 150 200
Rolling container dimension mm Ф690×570 Ф750×600 Ф970×590 Ф1060×810 Ф1170×900 Ф1290×970 Ф1560×1035 Ф1720×1230
Motor power Kw 2.2 2.2 4 5.5 7.5 11 22 30
Washing speed rpm 35 35 35 35 35 32 32 25
Middle extract speed rpm 440 440 400 375 370 350 350 290
High extract speed rpm 920 920 800 750 750 750 700 650
Diameter of hot/cold water pipe Inch 0.98 0.98 1.57 1.57 1.57 1.57 1.97 1.97
Steam pipe diameter Inch 0.59 0.59 0.79 0.79 0.79 0.98 1.26 1.57
Compressed air pressure mpa 0.4-0.5 0.4-0.5 0.4-0.5 0.4-0.5 0.4-0.5 0.4-0.5 0.4-0.4 0.4-0.6
Steam pressure mpa 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Steam consumption kg 6 8 25 30 45 50 70 85
Watert consumption kg 250 300 450 700 1150 1650 2000 2400
Machine dimension mm 1050×1050×1520 1050×1050×1520 1420×1240×1620 1630×1330×1740 1720×1460×1800 1920×1680×1940 2300×1940×2180 2550×2250×2240
Machine weight kg 550 610 1140 1600 2000 2400 4000 6500
Product advantage
1.Fully automatic, microcomputer-controlled.  User friendly and easy programmable.
2. High quality stainless steel, good appearance, long life.
3. Equipment with mechanical suspension shock structure, low noise, high washing, need no excessive stable foundations.
4.It is driven by triangle belt which is duable and moves smooth with little shock.
5.Imported bearing, precise and durable.
6.Hot/cold fill. Steam/electric heated. Remote lubricating.
7.After dewatering,the rate of water lower than 55%.reduce drying & ironing  energy consumption.If use groove type drying
8.High quality inverter system, easily realize washing and dehydration frequency stepless adjusting.
9. Safety door interlock system..Refuse to open the door when the machine is working.
Packaging & Delivery
Packing Detail: Wooden Case Packing of Heavy duty washing machine
Delivery Detail: Shipped in 15 days after payment
picture show
工厂 2

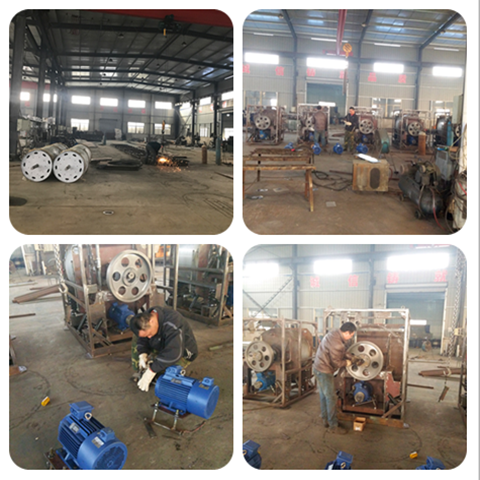

工人 1





























使用 10
