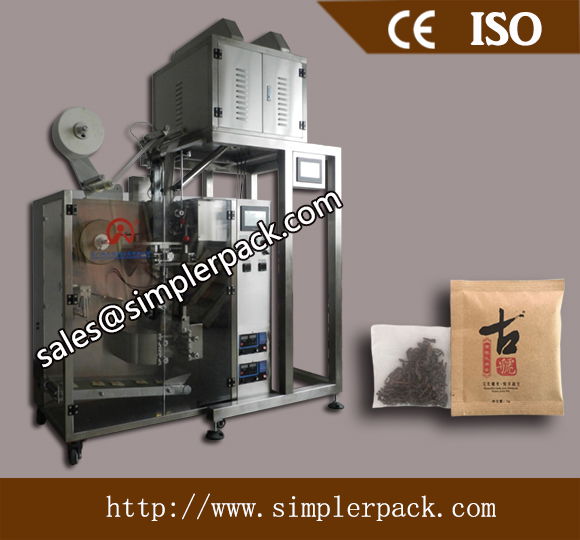

Flat Nolon Bag Packing Machine

Brand:Sengong

Description:1) Automatic multi-function packaging forming machine; 2) Suitable for all kinds of drinks tea leaves, herbs and flowers; 3) Filter food-grade inner PLA/nylon/non-woven bag in flat shape; 4) With flat outer envelope; with thread and tag 5) Highly equipped with international brand-name parts; 6) All-round process: filing, weighing, bag forming, sealing, cutting and counting etc. 7) Measuring filling system: Electric scale; 8) Quality Approval : CE, ISO9001:2008 9) Machine experience : 12 Years

Origin:China Fujian

Model:C23DX

MOQ:1Sets

FOB:perSets20000--23000USD

Port:Xiamen

Payment Terms:T/T

Supply Ablility:300Sets

Supply Time:Year

Delivery Time:2017-01-20

Packaging Details:Film Wrapping and Standard Export Carton Package

Product detail: //Brief Introduction://

1) Automatic multi-function packaging forming machine;

2) Suitable for all kinds of drinks tea leaves, herbs and flowers;

3) Filter food-grade inner PLA/nylon/non-woven bag in flat shape;

4) With flat outer envelope; with thread and tag;

5) Highly equipped with international brand-name parts;

6) All-round process: filing, weighing, bag forming, sealing, cutting and counting etc.

7) Measuring filling system: Electric scale;

8) Quality Approval : CE, ISO9001:2008

9) Machine experience : 12 years



//Application: //

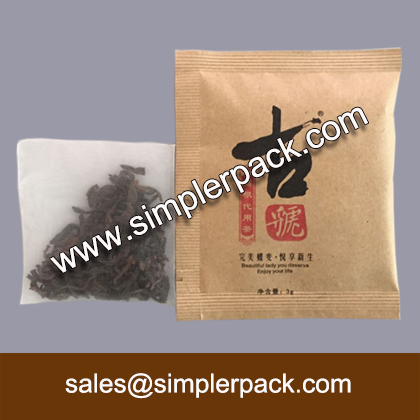

It is suitable for packing kinds of loose tea leaves and other drinks granules in flat/rectangle bag with outer envelop, such as black tea, flower tea, organic herbal tea, scented tea, fruit tea etc.



//Features: //

1.The packing material of the rectangle inner bag is nylon, non-woven fabric material imported from Japan, which is non-toxic, no bacteria, heat-resistant high quality food grade material, conforming to our national safety inspection standard.

2.The machine uses a unique sealing method - ultrasonic. It can seal tightly, safely, reduce the width of the extra edge, avoiding any waste of packing material.



//Technical data //

Machine type:	Tea Bag Packing Machine Series
Machine model:	C23DX
Machine name:	Automatic Flat Nylon Tea Bag Packing Machine with Outer Envelope(Electric Scales Filling)
Packaging Material:	Nylon material imported from Japan, Non-woven fabric, 100% biodegradable transparent material, PET, PLA.
Filling range:	1-3g/bag, error≤±0.2g/bag(depends on the materials)
Packing roll width:	120, 140, 160, 180(mm)
Adjustable range:	50, 60, 70, 80(mm)
Sealing and Cutting:	Electronic pulse--Ultrasonic melt cutting and heat sealing
Quantity of sealing device:	2 sets
Packing speed:	35-40bags/min
Motor Power:	380V, 50Hz, 1.2KW
Air supply:	Pressure≥0.9MPa, (optional with air pump )
Machine weight:	500KGS
Machine dimension:	1400mm*1200mm*2200mm(L*W*H)
