Evaporative Pad

Click for original picture
Fob Price: Discuss personally
Port: QINGDAO
Payment Terms: delivery withindays since payment
Location: China
  xu manager    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail
  • Size:Large
  • Cover Material:
  • Minimum Order Quantity:20
  • Unit:Cubic Meter

Origin:China Shandong

Model:7090,7060,5090

FOB:perCubic Meter/Cubic Meters70--120USD

Port:QINGDAO

Payment Terms:T/T

Supply Time:Day

Packaging Details:Carton

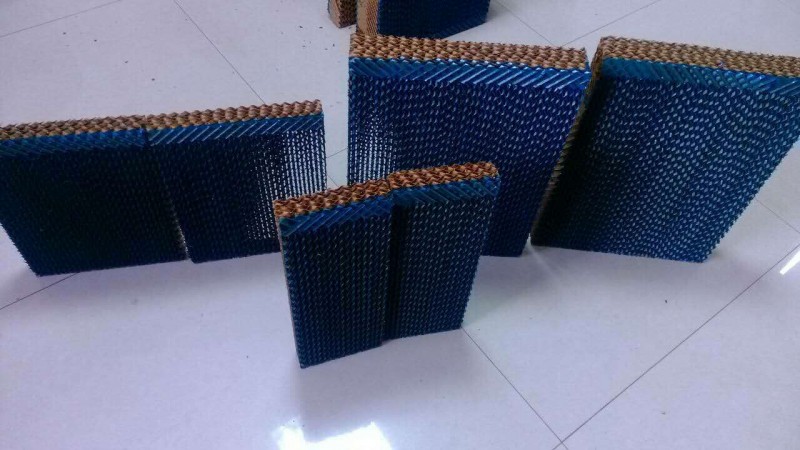

Product detail: Evaporative cooling pad

Contact person:Jack

Whatsapp:+86 18353795250

Product Features:

1)   Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.

2) Large evaporation area, cooling efficiency as high as 80%.

3) The product absorbs water naturally, with fast speed of pervasion and lasting effectiveness. One dro of water can diffuse within 4~5 seconds. The natural absorption height is 60~70mm/5minutes, as 200mm/1.5 hours, having reached international standard.

4) The product does not contain phenol which is irritant to the skin and the like chemical products. It is safe, energy saving, environmental protective, economic and durable.

5) Galvanized sheet and aluminum panel optional.

Working Principle
When the water cross the cooling pad, the water become water film on the surface of the pad. The water film exchange heat with the passing air and evaporate into the air. As the principle of evaporative cooling, controlling the temperature and humidity through modifying humidifying volume and the ventilation size.

Available Size 7090/5090

Note: Size could be made according to the customer.



H: Height    W: Width   D: Depth   h: corrugation height



α: corrugated sheet angle (1)      β: corrugated sheet angle (2)






Pad 7090


Pad
 5090


H (mm)

1500, 1800, 2000

1500, 1800, 2000



W (mm)

600, 300

600,300



D (mm)

100, 150, 200,300

100,150,200,300



h (mm)

7

5



 α (*)

45

45



β (*)

45

45
