Brand:GLSUN

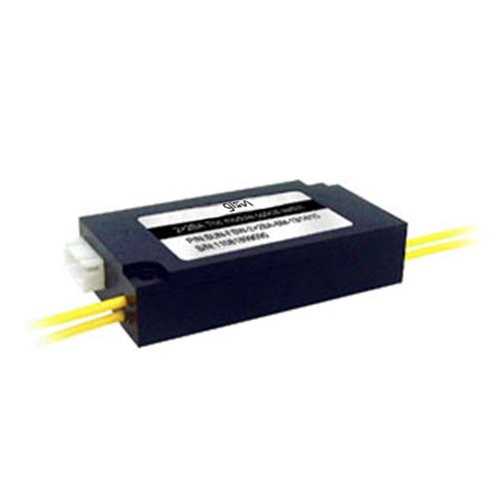

Description:SUN-FSW-2×2BA Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0×(W)30.0×(H)12.8mm. It is an ideal component for OADM，OXC，system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.
Origin:China Guangxi
Model:SUN-FSW-2×2BA
MOQ:100Unit/Units
FOB:perUnit/Units1--500USD
Port:Guangzhou/Shenzhen
Payment Terms:T/T
Supply Ablility:20000Unit/Units
Supply Time:Month
Delivery Time:2016-09-30
Packaging Details:by carton box
Product detail: 2×2BA Optical Switch - Features 2×2BA Optical Switch - Specifications Parameters Unit SUN-FSW-2×2BA Wavelength Range nm 1260 ~ 1650 Test Wavelength nm 1310 / 1550 Insertion Loss 1, 2 dB Typ: 0.8 Max: 1.0 Return Loss 1, 2 dB ≥ 50 Crosstalk 1 dB ≥ 55 PDL dB ≤0.05 WDL dB ≤0.25 Repeatability dB ≤±0.02 Operating Voltage V 3.0 or 5.0 Durability Cycles ≥ 10 Million Switching Time ms ≤8 Optical Power mW ≤500 Operating Temperature ℃ -20 ~ +70 Storage Temperature ℃ -40 ~ +85 Relative Humidity % 5 ~ 95 Weight g 25 Dimension mm (L)55.0×(W)30.0×(H)12.8 ±0.2 Note:1 Within operating temperature and SOP. 2 Excluding Connectors. Type State Optical Route Electric Drive 2×2BA Pin 1 Pin 2 Pin 3 Pin 4 Latching A P1-P3 V+ GND -- -- B P1-P4， P2-P3 -- -- GND V+ Type State Optical Route Electric Drive Status Sensor 2×2BA Pin 1 Pin 2 Pin 3-4 Non-latching A P1-P3 -- -- Open B P1-P4，P2-P3 V+ GND Close 2×2BA Optical Switch - Optical Route State A State B 2×2BA Optical Switch - Dimension 2×2BA Optical Switch - Electrical Specification Specifications Voltage Current Resistance 5V latching 4.5~5.5 V 36~44 mA 125 Ω 5V non-latching 4.5~5.5 V 26~32 mA 175 Ω 3V latching 2.7~3.3 V 54~66 mA 50 Ω 3V non-latching 2.7~3.3 V 39~47 mA 70 Ω A B C D E F G Fiber Type Operating Switch Type Test Wavelength Tube Type Fiber Length Connector SM: SM,9/125 M5:MM,50/125 M6:MM,62.5/125 X：Others 3: 3V 5: 5V L:Latching N:Non-latching 850:850nm 1310:1310nm 1550:1550nm 1310/1550:1310/1550nm X:Others 90:900um 20:2.0mm X: Others 05: 0.5m±5cm 10: 1.0m±5cm 15: 1.5m±5cm X: Others OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
2×2BA Optical Switch - Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
2×2BA Optical Switch - Pin Configurations
2×2BA Optical Switch - Ordering Information: SUN-FSW-2×2BA-A-B-C-D-E-F-G
Voltage
(Include connector)
