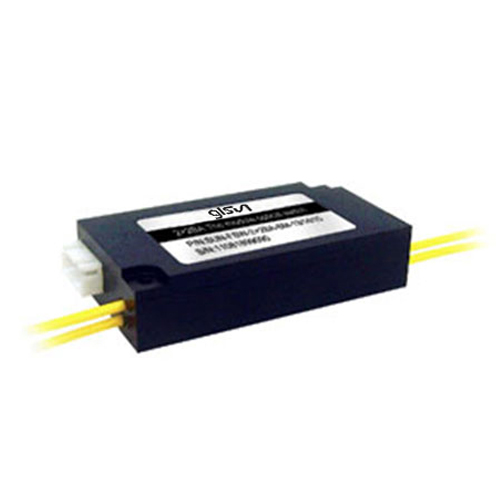

2×2A Fiber Optical Switch

Brand:GLSUN

Description:SUN-FSW-2×2A Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0×(W)26.0×(H)10.0mm. It is an ideal component for OADM，OXC，system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

Origin:China Guangxi

Model:SUN-FSW-2×2A

MOQ:100Unit/Units

FOB:perUnit/Units1--100USD

Port:Guangzhou/Shenzhen

Payment Terms:T/T

Supply Ablility:20000Unit/Units

Supply Time:Month

Delivery Time:2016-09-30

Packaging Details:by carton box

Product detail:2×2A Optical Switch - Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching

2×2A Optical Switch - Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)

2×2A Optical Switch - Specifications

Parameters	Unit	SUN-FSW-2×2A
Wavelength Range	nm	1260 ~ 1650
Test Wavelength	nm	1310 / 1550
Insertion Loss 1, 2	dB	Typ: 0.8    Max: 1.0
Return Loss 1, 2	dB	≥ 50
Crosstalk 1	dB	≥ 60
PDL	dB	≤0.05
WDL	dB	≤0.25
Repeatability	dB	≤±0.02
Operating Voltage	V	3.0  or  5.0
Durability	Cycles	≥ 10 Million
Switching Time	ms	≤8
Optical Power	mW	≤500
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Weight	g	25
Dimension	mm	(L)55.0×(W)26.0×(H)10.0 ±0.2
Note:1 Within operating temperature and SOP. 2 Excluding Connectors.

2×2A Optical Switch - Pin Configurations

Type	State	Optical Route	Electric Drive		Status Sensor
2×2A			Pin 1	Pin 2	Pin 3-4
Non-latching	A	P1-P3，P2-P4	V+	GND	Open
	B	P1-P4，P2-P3	--	--	Close

2×2A Optical Switch - Optical Route

State A	State B

2×2A Optical Switch - Dimension

2×2A Optical Switch - Electrical Specification

Specifications	Voltage	Current	Resistance
5V   non-latching	4.5~5.5 V	25~31 mA	178 Ω
3V   non-latching	2.7~3.3 V	42~51 mA	65 Ω

2×2A Optical Switch - Ordering Information:  SUN-FSW-2×2A-A-B-C-D-E-F-G

A	B	C	D	E	F	G
Fiber Type	Operating Voltage	Switch Type	Test Wavelength	Tube Type	Fiber Length (Include connector)	Connector
SM: SM, 9/125 M5:MM, 50/125 M6:MM, 62.5/125 X: Others	3: 3V 5: 5V	N:Non-latching	850: 850nm 1310: 1310nm 1550: 1550nm 1310/1550:1310/1550nm X:Others	90:900um 20:2.0mm X: Others	05: 0.5m±5cm 10: 1.0m±5cm 15: 1.5m±5cm X: Others	OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others
