Parking Ticket Mechine

Brand:aa

Product detail:

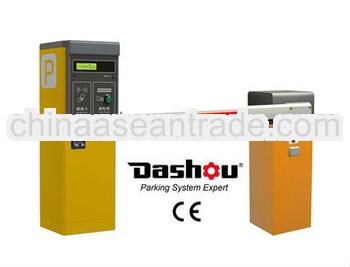

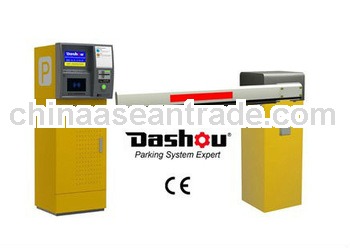

Parking Ticket Mechine



PM910C Classical Central Pay is a classical series Parking System for managing pay-to-park facilities with high traffic flow, for both hourly and registered parkers. It is composed of Entry Station, Exit Station, Entry Barrier, Exit Barrier, Manual-pay-station and software.This Parking Ticket Machine is ideal solution for parking lots of premises such as shopping center, exhibition center, hospitals, airports etc







Parking Ticket Machine System Features



Heavy duty, well finished IP54 cabinet in luxury design

The parking machine`s cabinet adopts 2mm precise machining cold-rolled plate, conformed to the IP54 dustproof and waterproof. Luxury design also decorates your premises





Unmanned Entry & Exit

Unmanned entry & exit helps you reduce labor cost.Hourly parkers get ticket from Entry Station themselves,and insert ticket into Exit Station to leave,while registered parkers enter and leave by self-service swiping their cards on Entry Station & Exit Station respectively, or enter & leave w/o stop if tag on windshield is read by long range RFID reader.





Charge hourly Parkers by Manual-pay-station

When leaving, hourly parkers come to Manual-pay-station (located in central place instead of exit) and give ticket to guard, the guard scan it by a barcode scanner to collect cash,then he pay cash and the guard return back the ticket to him,within given time, he can drive to the exit and insert the ticket into unmanned Exit Station, and then Exit Barrier open.





Manual-pay-station, Entry Station, Exit Station and PC Work Separately

Manual-pay-station, Entry Station and Exit Station separately work fine without connecting to a PC. The data stored in Manual-pay-station, Entry Station and Exit Station will be automatically uploaded to a computer if connected.



Unique Technology of Detecting Unpaid Vehicle

The parking ystem automatically records cars coming or leaving without reading cards or without paying.



User-friendly LCD/LED and Voice Prompt

The entry & exit station can be equipped with LCD or LED screen on which detailed operation and system info. are simply and friendly shown. Voice Prompt gives a warm-hearted welcome and operation guide to parkers





Capture Driver`s face (optional)

When vehicle leaves at the exit, two face pictures respectively taken at the entry and exit will be shown together side by side on the screen for comparison to ensure the safety of parking.



Idiot proof Software with Multi-function

The car parking system software provides the operators with idiot proof and user-friendly interface, and practical multi functions



Customize Charging Standards

The parking management system provides six different categories of customized charging standards for option



Intelligent Barrier

The digital barrier adopts 70w integrated decelerating torque motor and intelligent control unit. It integrates pressure wave resistance-rebound, loop detector / infrared triple anti-collision and anti-collision rubber pole to ensure the safety of vehicles coming in or out.



Parking Ticket Machine System Components

Entry Barrier, Exit Barrier

As one part of parking management system, barrier gate stops unauthorized parkers entering your premises, or giving access to authorized parkers.



Entry Station

It dispenses ticket to hourly parkers. While registered parkers get access by self-service swiping their proximity cards close to the reader built-in Entry Station, or enter w/o stop if tag on windowshield is read by external long range RFID reader. Typically Entry Station is coupled with Entry Barriers, Loop Detectors, and optional accessories, depending on the site requirements.



Exit Station

Hourly parkers insert the ticket into unmanned Exit Station to leave, registered parkers can leave by self-service swiping  cards onto the reader built-in Exit Station, or leave w/o stop if tag on windowshield is read by external long range RFID reader. Typically Exit Station is coupled with Exit Barriers, Loop Detectors, and optional accessories, depending on the site requirements.



Loop Detector

Connecting to a ground induction coil with two relays output, loop detector is to detect existence of vehicles.



Manual-pay-station

With it, when leaving, occasional parkers come to the pay-station and give ticket to guard, and the guard swipe the card onto the card reader built-in Manual-pay-station to collect cash. The charging data will be displayed and stored in cash register.



Parking Management Software & PC

The software provides the operators with idiot proof and user-friendly interface, and practical multi functions, such as managing registered parkers and occasional parkers, setting charging standard, real-time surveillance, parking space display, managing events, managing report, registering card etc.



Optional

Photo Comparison, Driver Face Capture, Voice Prompt, Intercom, Parking Space Display, Parking Fee Display, Middle Distance Card Reader, Long Distance Card Reader, Red & Green Lights, Automatic License Plate Recognition, Heating System etc.



                                                                       Successful installations example







                                                                                           2000 sqm factory
