high efficiency mono solar cells with low price ,6" 2BB/3BB

Brand:aa

Product detail:

       high efficiency mono solar cells with low price ,6" 2BB/3BB

Specifications:

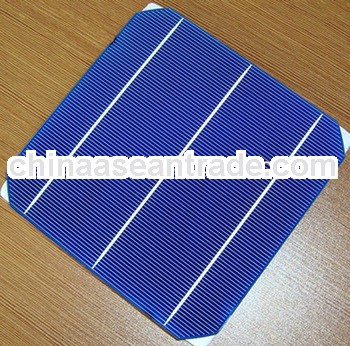

Solar cell.156*156mm,monocrystalline solar cell.
1.Grade A ,efficiency:17%-18%
2.Stable performance.Long term stability and reliability

Solar Cell

Name:156*156mm monocrystalline solar cell

Dimension:156*156mm+/-0.5mm

Characters:High quality to ensure the stabel and high photoelctricity conversion efficency;Coating with deep blue SiN4 anti-reflection film,uniformity and beautiful appearance.

Grade:A

Efficency:17%-18%

Wafer thickness:0.220+/-0.030mm



TYPICAL ELECTRICAL CHARACTERISTICS



Efficiency Code	170	168	166	164	162	160	158	156
Efficiency Eff(%)	17.00-17.19	16.80-16.99	16.60-16.79	16.40-16.39	16.20-16.39	16.00-16.19	15.80-15.99	15.60-15.79
Power Ppm(w)	4.14-4.19	4.09-4.14	4.04-4.09	3.99-4.04	3.94-3.99	3.89-3.94	3.85-3.89	3.80-3.85
Max.Power current Ipm(A)	7.97	7.91	7.82	7.77	7.72	7.67	7.62	7.56
Min.Power Current Ipm(A)	7.73	7.68	7.58	7.54	7.49	7.44	7.39	7.34
Short Circuit Current Isc(A)	8.45	8.40	8.34	8.30	8.25	8.21	8.15	8.10
Max Power Voltage Vpm(V)	0.522	0.520	0.519	0.516	0.513	0.511	0.508	0.505
Open Circuit Voltage Voc(V)	0.624	0.622	0.620	0.618	0.616	0.614	0.612	0.609
