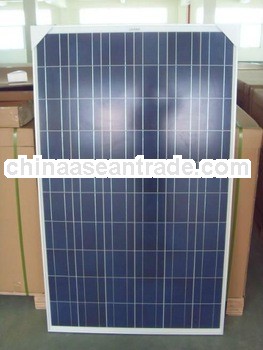

hot selling best price poly 230w solar panel in stock

Brand:aa

Product detail:



Features:
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance



3. Unique frame design with high mechanical strength for easy Installation.
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions
6. Outstanding electrical performance under high temperature and low irradiance conditons



Solar cells applications:
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Other industrial or commercial applications

Solar panel quality and warranty:
1. Peak power of single module in guaranteed in +-3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
5.5 years limited warranty on material and workmanship
6.10 years and 20 years limited warranty for minimum power output



Electrical Characteristics:

Cells	Polycrystalline silicon solar cells 156x156mm
Number of cells	60(6×10)
Dimensions (mm)	1650 x 992 x 45
Weight (kg)	23



Electrical Characteristics



Model	JX60P210W	JX60P220W	JX60P225W	JX60P230W	JX60P235W	JX60P240W
Max Power Pm(W)	210	220	225	230	235	240
Max Power Voltage Vm (V)	28.1	28.3	28.5	30	30.2	30.5
Max Power Current Im (A)	7.47	7.77	7.89	7.67	7.78	7.87
Open-Circuit Voltage Voc (V)	35.1	35.3	35.5	36	36.4	36.6
Short-Circuit Current Isc (A)	7.9	8.21	8.35	8.17	8.28	8.38
Cell Efficiency(%)	14.5	15.2	15.5	16	16.2	17.1
Module Efficiency(%)	13	13.6	13.9	14.3	14.9	15
Maximum System Voltage (V)	DC 1000(TUV) / DC 600(UL)
Power Tolerance(%)	0~+3
Series Fuse Rating (A)	15



Components & Mechanical Data

Front Glass	High Transparency Tempered Glass, 3.2mm
Junction Box	Pass the TUV Certificate PPO(black/IP65)
Output Cables	4mM2/0.9m
Connectors	MC4(UV resistance and self-locking/IP67)
Frame	Anodized aluminum alloy type 6063-T5
Encapsulation Material	EVA (0.50 ± 0.03mm thickness)
Back Foil	White TPT (0.32 ± 0.03mm thickness)
Fixing adhesive	Silicone Sealant(White)
Temperature Range(°C)	-40°C to +90°C
Max Load(Kpa)	2.4 wind load / 5.4 snow load
Temperature Range(°C)	-40°C to +90°C





Solar Panel Structure:
