H type fin tube for heat exchanger / seamless base tube

Brand:aa

Product detail:

H type fin tube for heat exchanger / seamless base tube

H fin tube, known as Square fin tube & H Finned economizer, finned tube,

is used in boilers parts, marine power.

It is a kind of boiler parts, to have two steel circular symmetry to be

welded on fluorescent tubes to form fins positive shap much like letter "H",

so called H-fin tube. H-economizer widely used in utility boilers, industrial

boilers, marine power, such as the tail of heat exchanger components.





  Principle:

H-economizer two rectangular fin, similar to a square, its edge length for

the fluorescent tubes of 2-fold, an expansion of the heating surface.
H-economizer flash resistance welding processes used, the welding seam

after the high rate of fusion, weld tensile strength, and has good thermal conductivity. H-economizer can also manufacture dual tube "double H"

type fin tubes, its rigid structure, and can be applied to a longer tube row

occasion.





Supplying Scope:

Fin tube Specification:Chinese GB standard or equivalent ASME standard

or others

Material: carbon steel, stainless steel, Aluminium and alloy steel;



Supplied H Type Fin Tube Specification

Item	Symbol	Unit	Parameter Value
Bare Tube OD	Φ	mm	32-51
Bare Tube Thickness	s	mm	2.5-6
Bare Tube Length	L	mm	≤11500
Fin Length	Lf	mm	≤10500
Fin Height	Hf	mm	60-140
Fin Width	β	mm	60-140
Fin Thickness	Sf	mm	2.0-4.0
Fin Pitch	T	mm	12.5-30
H Fin Space	b	mm	5-12



Special Material

Tube	20G SA210C	Φ32-Φ51
Fin	Q235	Δ2-3
Tile Type Anti-abrasion Hood	1Cr6SiMo	Δ3
Comb Type Anti-abrasion Plate	1Cr18Ni9Ti	Δ2
Hanging Plate	12cR1MoV	Δ=16
Baffle	12Cr1MoV	Δ=8



Other sizes of the finned tube can be discused with customers' requirements.

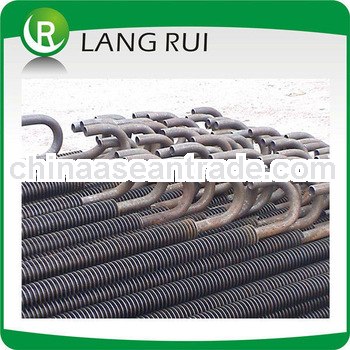

Real product photo show



Products on the production line

applied for economizer
