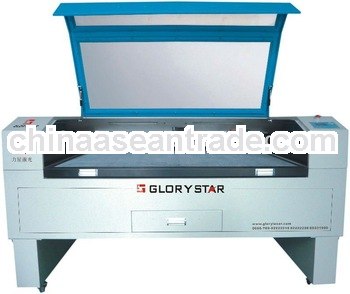

Garment industrial Laser Engraving Cutting Machine(GLC1290)

Brand:aa

Product detail:

 garment industrial Laser Engraving Cutting Machine(GLC1290)



Technical Data

Model	GLC-1290
Laser type	glass CO2 laser tube
Laser power	70w/80w/100w/130w/150w
Engraving area	1200x900mm
Engraving speed	0-64m/min
Cutting speed	0-36m/min
Repeating lacating	±0.05mm
Moving system	CNC control system
Cooling mode	Water-cooling and protection system
Whole power	≤1250w
Working voltage	220±10% 50Hz(60Hz)
Operating temperature	0~45ºC
Prerating humidity	5%-95%
Controlling software	Glorystar laser software
Graphic format supported	CAD BMP,JPG,PNG,TIF,PCX,TAG,IOO,GIF,PLT
Gross weight	610kg



Product Features
CO2 laser engraving cutting machines series are very popular in the market around the world. They have the high speed, high cutting accuracy and high stability. Quality and price ratio is very high. This series laser cutting /engraving machine imported originally division stepping motor and driver from USA. Original straight-line guide rail from Japan. High speed USB2.0 port, LCD and silicon panel, water-cooling system, domestic-made glass CO2 laser tube, sealed laser beam by using of the imported lens and mirrors, ensure high cutting speed and long life time of laser tube.

Applications
Engraving/cutting of fabric and leather in garment, embroidery, toy, handbag, glove precision cutting of decoration board and non-metal board, like acrylic and medium-density board in ads, upholstery, electrical appliance and plastic industry, cardboard box industry, rubber printing plate engraving.



Materials
Wood, paper, leather, cloth, organic glass, resin, acrylic, wollens, plastic, rubber, ceramic, crystal bowlder, bamboo and other non-metal materials.
