Product detail:

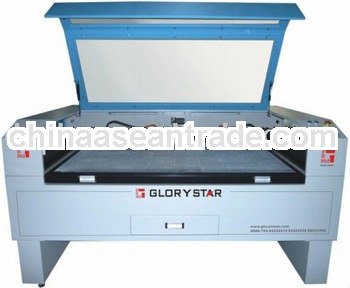

Apparel Industrial Laser Cutting and Engraving Machine
Product Features
CO2 two heads laser cutting machines series are very popular in the market around the world. They have double laser heads design, high speed, high cutting accuracy and high stability. This series laser cutting and engraving machine imported originally division stepping motor and driver from USA. Original straight line guide rail from Japan. High speed USB2.0 port, LCD and silicon panel, water-cooling system, domestic glass CO2 laser tube, sealed laser beam by using of the imported lens and mirrors, ensure high cutting speed and long life time of laser tube.
Applicable Industry
Engraving and cutting of fabric and leather in apparel, embroidery, toy, handbag, glove precision cutting of decoration board and non-metal board, like acrylic and medium-density board in ads, upholstery, electrical appliance and plastic industry, cardboard box industry, rubber printing plate engraving. Ultra-thick material surface carving.
Materials
Wood, paper, leather, cloth, organicglass, resin, acrylic, wollens, plastic, rubber, ceramic, crystal bowlder, bamboo and other non-metal materials.
Technical Data
| Model | GLC-1610T |
| Laser type | glass CO2 laser tube |
| Laser power | 70w/80w/100w/130w/150w |
| Engraving area | 1600x1000mm |
| Engraving speed | 0-64m/min |
| Cutting speed | 0-36m/min |
| Repeating lacating | ±0.05mm |
| Moving system | CNC control system |
| Cooling mode | Water-cooling and protection system |
| Whole power | ≤1250w |
| Working voltage | 220±10% 50Hz(60Hz) |
| Operating temperature | 0~45ºC |
| Prerating humidity | 5%-95% |
| Controlling sofeware | Glorystar laser software |
| Graphic format supported | CAD BMP,JPG,PNG,TIF,PCX,TAG,IOO,GIF,PLT |
| Gross weight | 780kg |
