high efficiency equipment water filter machine

Click for original picture
Fob Price: 100000.00 USD/
MOQ: 1
Payment Terms: delivery withindays since payment
Location: China
  Mr. Charles Cai    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:aa

Product detail:

 water filter machine press















Why choose us:



1. Long history:

We have 16 years exporting history, companying with good reputation, since our factory set up in 1987.

2. Good quality control system:

Huge financial resources invested, Management System Systematized, and service personalized, which will be our goal and persistent forever. We choose best motor form Henan Huanghe Whirlwind Co., Ltd. (Stock NO.600172) Besides ISO9001:2008, CE certificates, every machine will be tested before delivery.

3. Supply ability:

We specialize in design machines according customers’ requirements. 100 sets of machines can be supplied per month.

4. Huge market overseas:

Our machines have been sold all over the world, especially Africa, Europe, Asia, and North America. Clients over many countries like Australia, UK, America, Mexico, Peru, Brazil, Kenya, Tanzania, Saudi Arab, UAE, etc.

5. Equipment working site:

You are welcomed to visit our factory, the machines can be operated on site, and you will master the usage of machines nearby.

6. After-sales:

(1) 24 hours we are ready to explain question for you.

(2) Professional engineers supported, along with strong technical service.

(3) Excellent after-sales service.

(4) Any problem can be solved without influence products schedule of customers.

7. Our faith:

Creating the greatest value for customers and your satisfaction is our persistent pursuit.





Features:
1. Our main products: Plate and frame filter press, chamber filter press, belt filter press and the supporting parts of the filtration equipment.
2. The devices are widely used in oil industry, chemical industry, metallurgy, environmental protection, food, beverage, pharmacy, the sugar industry, starch, paper, coal washing, ceramic, mineral processing, sewage treatment and a variety of solid-liquid separation.
3. Filter area: 0.5 - 2000 m2
4. Material of the plate and the frame: Reinforced polypropylene, Glass fiber polypropylene, stainless steel, cast iron, ductile iron, cast steel, Aluminum brass, etc.
5. Mechanical principles: manual, mechanical, Hydraulic pressure, Computer program control, etc.
6. Temperatures range: -40°C---160°C
7. Pressure: up to 2.4MPa

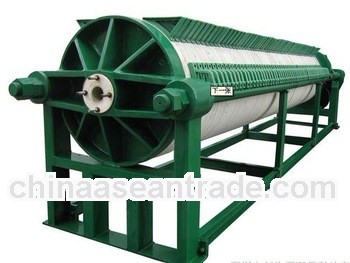

The filter press



There are various machines for your choice.





















Filter plates



There are different plates, for different requirements, the material can be different.

















Filter cloth
There are different kinds of filter cloth for different kinds of filtration.














Residue



This picture is just for Sludge Treatment, we can also manufacture different filter press machines for other uses.

















Some of the machines in our warehouse.











There are different models for different uses, you can tell us your specific requirements, and then the best model will be recommended to you.











       Chamber filter press’s single block filter board is thicker than plate frame type filter press’s. Because chamber filter press is made of two same filter board. When pressing two filter board tightly, it forms a filter room. The filter room is used to place the granular objects which are isolated by the filter cloth. The feeding hole is in the middle of filter board. Chamber filter press is general used for filtering the material with much granular object, such as sewage treatment, mineral processing, coal washing, etc.

feature:

automatic filter press machine

1.Filter area of 0.6-800 Square meters

2.Antisepsis and good seal performance

3.High filter cake dehydration rate.

4.The filtering speed is quick.

5.It is convenient to discharge the slag.It could bear filtering pressure as high as 3.0 Mpa.

6. Widely used in oil, chemical industry, dye, metallurgy, pharmacy, food, paper making and sewage treatment, and other various need solid-liquid separation fields, apply to small filter industry, use commonly pressure is low, less than 0.4 Mpa pressure filtration of filtration field.



 Technology parameters





Formfilter press modelfilter area(m2)size (mm)cake thickness (mm)qty of platechamber volume(L)filter pressure(Mpa)sizeweight (kg)
length (mm)width  (mm)height (mm)
320XS1/320-30U1320*3203041511200660650340
XS2/320-30U29311515390
XS3/320-30U314461755440
450XS4/450-30U1450*450309610.61860870870680
XS6/450-30U614912120730
XS8/450-30U8191222380790
XS12/450-30U12291822880900
XS16/450-30U163924333801000
630X20/630-30U20630*63030242980.63350115011501870
X30/630-30U303745340002190
X40/630-30U404759546002450
800X50/800-30U50800*80030387490.64205140013002790
X60/800-30U604690246703040
X70/800-30U7054105651153300
X80/800-30U8062121055603550
1000X50/1000-30U501000*100030287520.53800145013503080
X60/1000-30U603490842603330
X70/1000-30U7040106445203580
X80/1000-30U8045119448203790
X90/1000-30U9051134951704040
X100/1000-30U10057150555304290
X120/1000-30U12068179062004750
1250X100/1250-30U1001250*1250303615190.54500175015504960
X120/1250-30U12043180749105420
X140/1250-30U14050209453205890
X160/1250-30U16058242358006410
X180/1250-30U18065271062106870
X200/1250-30U20072299867207330
X250/1250-30U25090373777508480
1500X200/1500-30U2001500*1500305029990.561502130190012500
X250/1500-30U250633764706014500
X300/1500-30U300764528794016500
X350/1500-30U350895292885018500
X400/1500-30U4001015998974020300
X450/1500-30U45011467621065022300
X500/1500-30U50012775271157024200
