Product Detail

Brand:aa

Product detail:

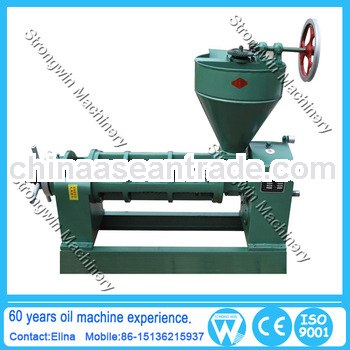

    China manufacturer soybean oil expeller



1. Product description of soybean oil expeller



Model: 6YL-95 and ZX-10 screw type presses are advanced oil processing machinery, characterized by their simple design, easy to use, wide suitability and continuous operation, and also, high productivity and high oil output rate, moreover, they can be used for various raw materials, as ground nuts, beans, rapeseeds and cotton seeds, sesame, olive, sunflower, coconuts, cocoa and grass seeds etc. However, they are suitable for medium-small sized oil extruding workshop or professional farmers. Certainly, they can be used for pre-pressing submerging oil workshops too.



Note: Users are strongly required to read carefully the manual before operating.



2. Operation principle of soybean oil expeller



When oil press is operating, prepared materials enter the es-truding chamber from the hopper and then moves forwards by the rotating pressing. Screwed and is pressed. Under the high pressure will be created, which also creates friction and relative movement among material particles. On the other hand, root diameter of the pressing screw varies larger from one end to the other hence, when rotating, it not only pushes particles moving but turns them outwards as well. Meanwhile particles adjacent the screw will rotate along with screw’s rotating, causing every particle adjacent the screw will rotate along with screw’s rotating, causing every particles insides the chamber to posses different speed. Therefore, relative movement among particles creates heat which is necessary duting manufac-turing because of helping protein change properly, damage col-loid, increase plasticity, decrease oil, elasticity, resulting in high oil productivity.



3.Parameters of soybean oil expeller



MODEL

CAPACITY(kg/h)

POWER(kw)

NET WEIGHT(kg)

PACKING(mm)

6YL-68

40

5.5

130

1050*660*760

6YL-80

80-125

5.5

330

1320*440*695

6YL-95

160-200

11

420

1910*610*765

6YL-100

160-200

7.5

400

1860*550*695

6YL-120

200-300

11

700

2060*610*770

6YL-130

375-500

18.5

700

2320*700*780

6YL-160

550-700

18.5

920

2020*700*780

6YL-165

620-830

22-30

1600

2120*800*980



4.Structure of soybean oil expeller















If you have any problem about soybean oil expeller, pls contact me feel free.
