dumbwaiter china

Click for original picture
power: 1.1-3KW
CAPACITY: 100-300KG
Fob Price: Discuss personally
Payment Terms: delivery withindays since payment
Location: China Jiangsu
  冯建男    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:TAIFU

Description:dumbwaiter chinadumbwaiter china,used in hospital,made in china,for deliverying medicine.

Packaging Details:wooden case

Product detail:

dumbwaiter china

  This series of dumb waiters use button control ,they are widely serviced for Hotel,Hospital,Bank,enterprise dining room,Library,Kindergarten,Factory,Shopping Center,Post Office and so on.They are widely used for transferring food,dishes,commodities,books,medicine and so on. The Structure of the Dumb waiters are made of Steel Frame and Stainless steel Elevator car.It will be much more convenient and much easier for the clients because the Dumb Waiter has its own machine room,the clients will not need specially room for the traction machine,they also don’t need embed the holder when designing the hoistway.The Dumb Waiter could be your best choices due to its stable structure and running system.All the elevators we provide are completely based on GB 25194-2010 and EN8.1-3-2000 from design,producing and installation. In the recently years,we have brought in the international advanced technologies and design concepts,through combining them with our traditional advantage ,we have produced the updating TWJ series dumb waiter .The existing TWJ has more stable running system and longer using life, Its performance can be compared to import-brand elevator.

Dumb waiter is table type,the door open manually .The material of the lift car,landing door is Food grade stainless steel hairline.there are plates detachable plates in the car. The main engine transmission adopts high accuracy worm geared ,with the character of small volume,light weight,high transmission efficiency,running stable,convenient installation,longer using life.The brake is controlled by DC110V,double coil,Bilateral brake arm,with the advantages of lower noise,longer brake torque and stable brake.

The control system of this series of dumb waiter are Microcomputer frequency modulation and voltage control,which change the elevator speed form single speed to infinitely variable speeds,so that the elevator can moved as the rated route to achieve better landing accuracy.Due to the adopt of VF technology,the running speed increase to 1.0m/s for the original 0.4m/s,by which it achieves higher efficiency and more convenient,more stable and more energy-saving.

Regular Specification:750mm(lift car weight )×750mm(lift car depth)×800mm(light car height),(the size could be designed )
   The rated capacity:100KG 200KG,250KG,300KG.


FOR MORE DETAILS,PLEASE CONTACT:Heather Feng
Email:heather@fushidianti.com
wechat:982906950
web:www.fushidianti.com

factory inside

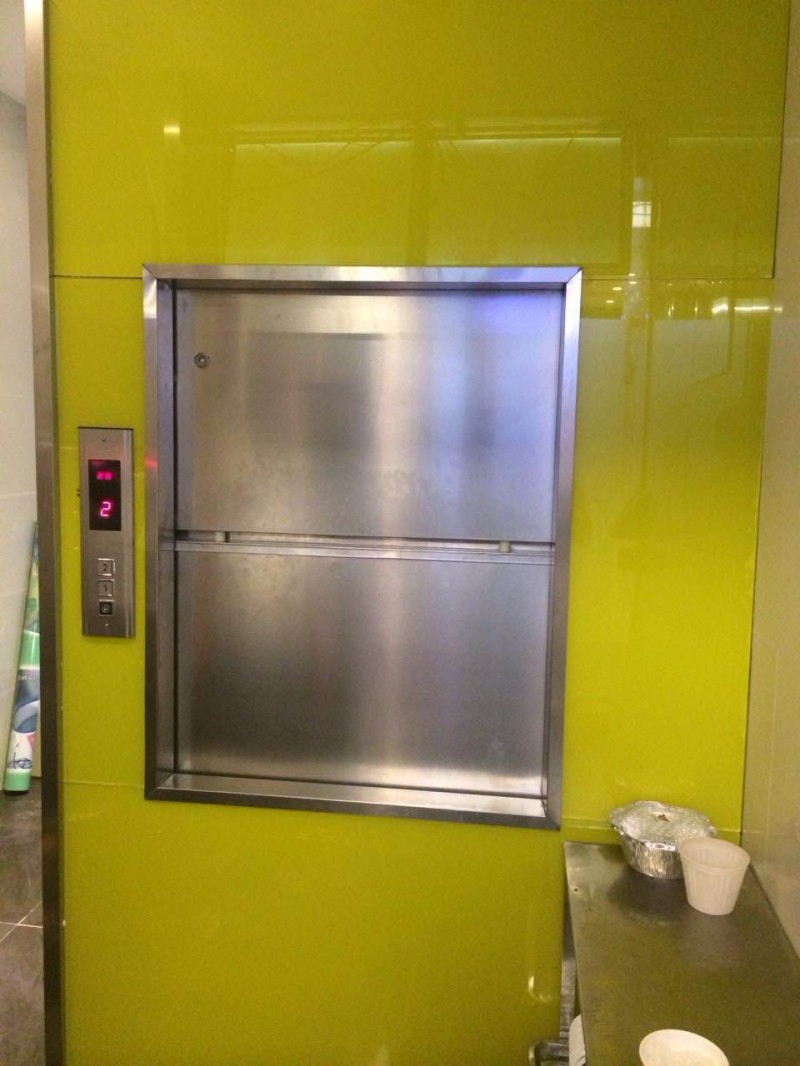

dumb waiter (3)
control cabinet


more..Other products from this supplier
