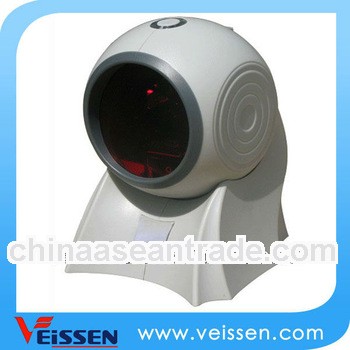

Omni-directional Laser Scanner BC-32
- Adjustable scanner
- USB free driver, plug and play
- Scan automatically, operate easily
- Build-in bi-directional communication
- Desktop mounted, easy to use
- 5 direction scan pattern, 20 scan lines
- Scanning Speed: 1185 scans/sec, high fast scan rate
- Reads all 1D standard barcodes, including GS1 Databar
PERFORMANCE PARAMETERS | |
Light Source | Visible Laser Diode 650nm |
Line NO. | 20 Lines |
Scan Rate | 1180±5% Scan Lines Per Second |
Scan Pattern | Omnidirectional: 5 Fileds of 4 parallel lines |
Print Contrast | 30% minimum reflectance difference |
Decode Capability | EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN 128, Coda bar, Code 25 non-interleaved, Code 25 interleaved , Matrix 2 of 5, MSI, Post Bar, etc |
ELECTRICAL PARAMETERS | |
Support Interface | PS/2 Keyboard, USB, RS232 (Selectable) |
Voltage .Power | DC 5V±5% 1.6W |
Laser-level | Class1: IEC60825-1 |
EMC | FCC part 15class B, CE En55022B, VCCI, BSMI |
LED Indicator | Red and Blue |
PHYSICAL PARAMETERS | |
Weight |
Host Net :470g G.W. :780g
|
Host Size | 116mm x117mm x147mm |
Package Size | 240mm x140mmx140mm |
ENVIRONMENTAL PATAMETER | |
Crash resistant | 1.2Mdrop onto concrete |
Operating | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -20°C to 40°C (-4°F to 104°F) |
Humidity | 5%~95% Relative humidity, Non-condensing |
Environmental | Sealed to resist airborne particulate contaminants |
Packing: 4 units in a carton box, with each in gift box.
Payment: T/T, Western Union
Lead time: 15 to 25 days.
Price term: FOB Guangzhou, CFR or CIF destination port.
Warranty: 18 months.
