Based on a well-proven TESA`s technologysince more than 25 years,

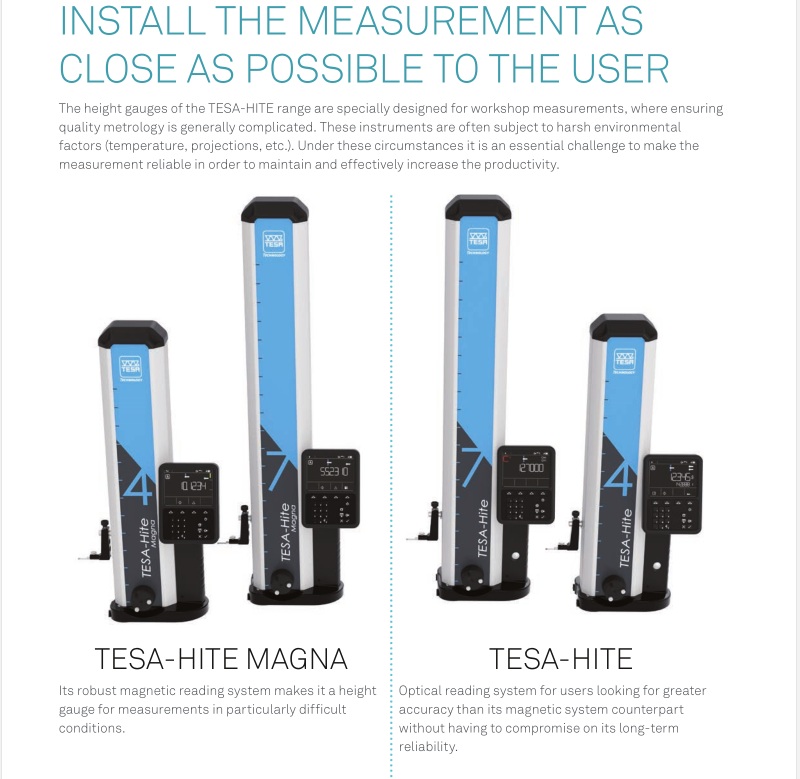

the new TESA-HITE magna 400 and 700 areruggedly built for use even in the most hostile

workshop environment, especially because of their fullprotection against the penetration

of liquids whatever or dust particles. Each heightgauge comes equipped

with the patented TESA magna μ system.Theirunique features provide the most

favourable Price/Performance relationship andmake them indispensable for the workshop.

• Long measuring span

• Fully protected electronics against splashingliquids and dust particles

• Mounted control panel

• Automatic probing of diameters using the uniquepatented system for detecting

the culmination point

• Able to capture parallelism errors

• Patented TESA`s magnetic system

• Insert holder and probe inserts compatible with allTESA MICRO-HITE height gauges.

• SCS calibration certifi cate provided with eachsingle tool

订货号 Order No.	描述 Description	规格和尺寸 Model and Size
00730047	TESA HITE 400 MAGNA测高仪 TESA Hite 400 MAGNA	400
00730059	TESA HITE 700 MAGNA测高仪 TESA Hite 700 MAGNA		700
以上每台测高仪(含控制面板)包含下列零组件 Each set above with control panel consists of following components
00760143	标准测头安装座一个                                                                    1 Standard probe-fixing arm	l	l
00760164	测球直径为5 mm的标准测头一只                                              1 Standard 5mm measuring probe	l	l
00760169	测头校验用标准工具一个                                             1 Master piece for determining the probe constant	l	l
00760157	6V可充电电池一个                                                   1 Battery pack,6V	l	l
04761054	电压转换器一个 1 Mains adapter	l	l
04761055	欧式电缆一根 1 Mains cable EU	l	l
04761056	美式电缆一根 1 Mains cable US	l	l
	价格(RMB) Price	AAA	BBB
