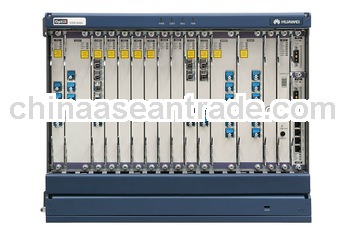

Click to enlarge
Product Specifications
Specifications | OptiX OSN 6800 | |
|---|---|---|
Dimensions (mm) | 497 (W) x 295 (D) x 400 (H) | |
Number of slots for service boards | 17 | |
Switch | Optical | 1 to 9-degree ROADM |
| Electrical |
| |
Wavelength (max) | DWDM: 80-ch, CWDM: 8-ch | |
Wavelength range | DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2) | |
Max. rate per channel | 100 Gbit/s (OTU4) | |
Max. distance | Multi-span transmission: 32 span x 22 dB/span (10G), 25 span x 22 dB/span (40G), 20 span x 22 dB/span (100G) without electrical regeneration Ultra-long single-span transmission: 1 span x 81 dB/span (10G), 1 span x 71 dB/span (40G) | |
Service types supported | SDH, SONET, Ethernet, SAN, OTN, Video | |
Line rate | 2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s | |
Max. capacity per PID group | 120 Gbit/s | |
Topology | Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh | |
Redundancy and Protection | Network level protection (OTN) | Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, MS SNCP, ODUk SPRing protection, OWSP, board-Level protection |
Network level protection (Ethernet) | DBPS, DLAG, ERPS, LAG, LPT, MSTP, STP and RSTP, VLAN SNCP | |
Equipment level protection | Power redundancy, fan redundancy, cross-connect board redundancy, system control and communication board redundancy | |
| Optical power management | ALS, AGC, ALC, APE, IPA, OPA | |
| Synchronization |
| |
| ASON | Optical-Layer ASON | |
Product Highlights
The OptiX OSN 6800 supports 40 Gbit/s and 100 Gbit/s line rates and a cross-connect capacity greater than 10 Tbit/s. It features power saving, and high reliability and maintainability.
Highest Cross-Connect Capacity with Flexible Large-Capacity Service Grooming
- Features high cross-connect capacity. A single subrack supports a maximum of 360G bit/s cross-connect capacity, implementing large-capacity service grooming. Only one subrack is required for the large-capacity service grooming and therefore lowers power consumption and reduces the floor space.
- Supports multi-granularity OTN cross-connection, that is, ODUk cross-connection, where k can be 0, 1, 2, 2e, 3, 4, or flex.
- Supports unified switching capabilities of VC, ODUk, and packet services , and supports flexible bandwidth allocation.
