| Application: | ||
| Fannings, Granular, Leaf & Flower, Fruit tea | ||
| Features: | ||
| *Sealing by Ultrasonic technology. | ||
| *Irregular material can be easily filled. | ||
| * |
||
| *SMC's pneumatic components and Schneider's electric parts. | ||
| *Mechanism and Gas are well integrated. | ||
| *Load cells and sliding cups are optional for different tea sharps. | ||
| *Max packing capacity: 3000 bags per hour. | ||

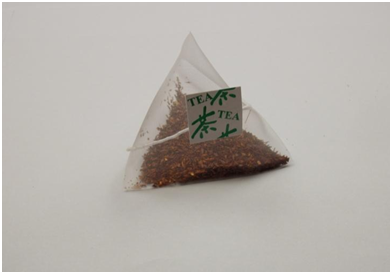

| *Labeled tea bag | ||
| *Pyramid and rectangle type can be switched freely. | ||
| Specifications: | ||
| ■ Metering Range:1-10g | ||
| ■ Accuracy: 0.2g | ||
| ■ Capacity: 50 Tea Bags | ||
| ■ Sealing Type: Ultrasonic | ||
| ■ Metering Type: Cylinder | ||
| ■ Bag Material: Nylon, Non-woven and Corn Fabric | ||
| ■ Roll Width(mm): 120, 140, 160 | ||
| ■ Roll OD(mm): <400 | ||
| ■ Roll ID(mm): 76 | ||
| ■ Air Consumsion: >0.6Mpa | ||
| ■ Electracity: 2.5/2.8KW,220V,50Hz | ||
| ■ Dimensions(mm):L1250×W800×H2100, L1250×W800×H2100 | ||
| ■ Weight: 500Kg-600Kg | ||
| Optionals: | ||
| ■ Auto-feeding system | ||
| ■ Load cells | ||
