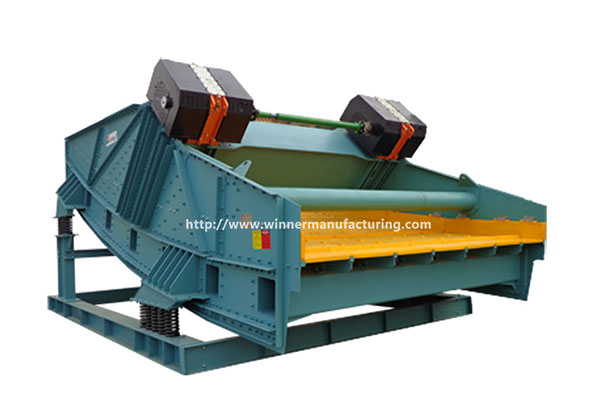

Click for original picture
Brand:WINNER
Description:Banana shaped vibrating screen is a box-type vibrator and a number of different angle screen surface of the linear vibrating screen, screen box shape and banana similar. It is mainly used for the grading of large and medium size materials with high fines content. Its structure is simple, stable production performance, smooth operation, easy maintenance, maintenance, inspection.
Origin:China Henan
Model:WZXD
MOQ:1Sets
FOB:perSets36200--86880USD
Port:Tianjin,Dalian,Shanghai,Kunshan,Guangzhou,Fuzhou,Lianyungang,etc.
Payment Terms:L/C
Supply Ablility:30Sets
Supply Time:Month
Packaging Details:Product standard container export, reach to the requirements of the sea transportation.
Product detail:
Product overview of Banana shaped vibrating screen:
Banana shaped vibrating screen is a box-type vibrator and a number of different angle screen surface of the linear vibrating screen, screen box shape and banana similar. It is mainly used for the grading of large and medium size materials with high fines content. Its structure is simple, stable production performance, smooth operation, easy maintenance, maintenance, inspection.
Structure of Banana shaped vibrating screen:
Banana shaped vibrating screen equipment including: screen box, vibrator, transmission system, the Ministry of base, spring, screen, motor, control box, etc.
Product Applications of Banana shaped vibrating screen:
It is mainly used for the grading of large and medium size materials with high fines content. Can also be used for dehydration, desorption operations.
Product features of Banana shaped vibrating screen:
Banana shaped vibrating screen is a linear vibrating screen into the banana-shaped multi-segment screen surface of the proprietary technology designed. In the feed side there is a larger slope of the screen surface to a certain point of gradual decline, until the grain mouth, the feed end of the slope screen surface allows more material through the sieve surface, a higher screening speed and more Thin layers of material. Because large pieces of material faster through the steep slope, so that faster particles closer to the sieve surface, can not be hindered through the gap, so the banana-shaped vibrating screen with a high screening efficiency and higher than the traditional classification sieve 1.5- 2 times the capacity of the characteristics.
Technical parameter table of Banana shaped vibrating screen:
|
Model |
Area |
Feeding granularity |
Processing capacity |
Inclination |
Size |
Voltage |
Power |
|
m2 |
mm |
t/h |
|
mm |
V |
KW |
|
|
WZXD1560 |
9 |
≤300 |
80-400 |
5º-25º 5 section screen surface |
5-50 |
380 |
2x11 |
|
WZXD2060 |
12 |
110-500 |
2x15 |
||||
|
WZXD2560 |
15 |
130-650 |
2x18.5 |
||||
|
WZXD3060 |
18 |
160-750 |
2x22 |
||||
|
WZXD3073 |
21.9 |
190-800 |
2x30 |
||||
|
WZXD3642 |
15.12 |
130-650 |
2x15 |
||||
|
WZXD3660 |
21.6 |
200-800 |
2x22 |
||||
|
WZXD2590 |
22.5 |
200-800 |
2x22 |
||||
|
WZXD3090 |
27 |
240-1100 |
2x30 |
||||
|
WZXD3690 |
32.4 |
300-1350 |
2x37 |
