Product Detail

Brand:Blue Fish

Description:Blue fish 1000L/H DC 24v Brushless Aquarium Water Pump

Origin:China Guangdong

Model:SL-DC2L1000Y04S-S

Port:SHENZHEN

Supply Ablility:3

Delivery Time:2017-11-10

Packaging Details:Blue fish 1000L/H DC 24v Brushless Aquarium Water Pump

Product detail: Blue fish 1000L/H DC 24v Brushless Aquarium Water Pump

Parameters:

Model:SL-DC2L1000Y04S-S

Volatge(V):24V

Power(W):24W

Max static water head(M):4.0M

Max static water flow(L/H):1000L/H

Size(MM):100.4*50*69MM

Dimension of outlet(MM):13MM

Net weight(KG):0.34KG

Specifications:

1.Driving method:Brushless,Permanent magnetic

2.Pump material:ABS,PES,SPS,PPS,PA66+30%GF(Optional)

3.Using condition:Submerible

4.Fluids:Fresh,oil and salt water

5.Max working temp:60 Celsius

6.Noise:<35dB

7.Waterproof class:IP68(can be submersible installed)

8.Life span:More than 30,000hrs

9.Power supply:Solar panel,DC electric source,adapter,battery

10.Protection function:Drying,running and blocking protection(submersible)

Product Photos:

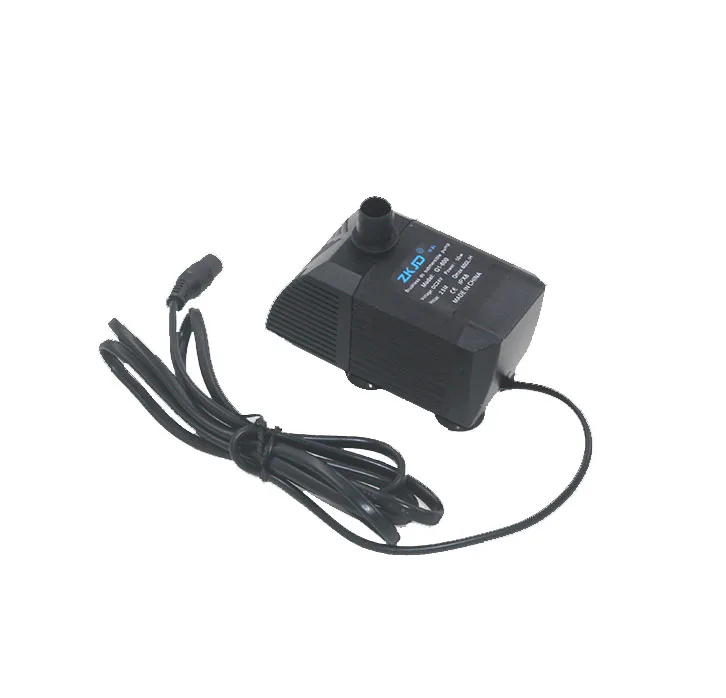

IMG_8464

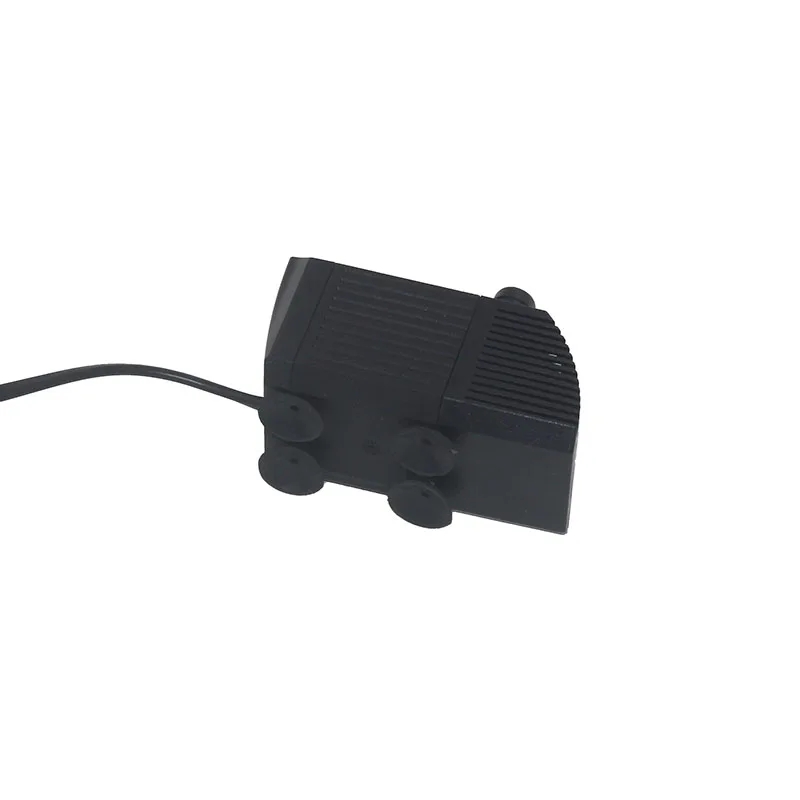

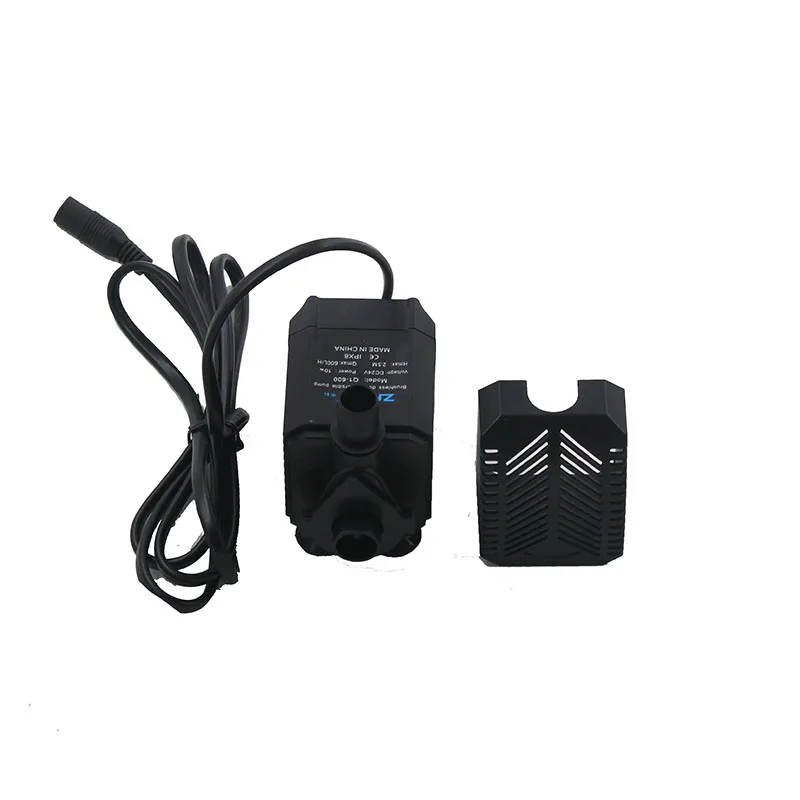

IMG_8468IMG_8469

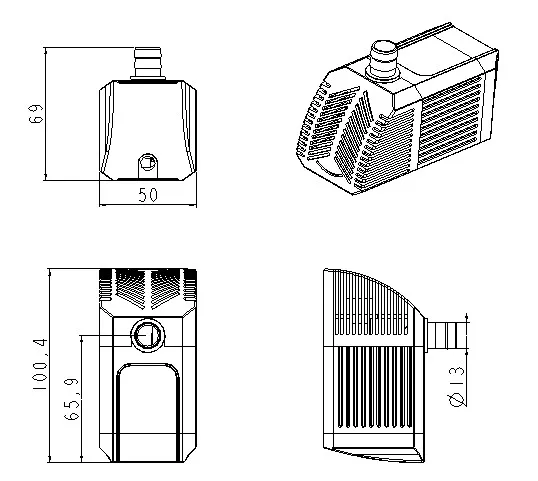

Dimensions:

Q1-1

Features:

Ø DC24V, low-voltage, safe, NO.1 aquarium submersible pump in china.

Ø 100% copper motor, brushless, non-pollution, small size with high efficient ,long life span.

Ø super energy saving 50%.

Ø Small size, high efficiency, maintenance-free, low consumption, strong anti-jamming ability, stable performance.

Ø Adopt silicone foot to absorb vibration &reduce noise,easy for installation.

Ø Stator and control circuits are completely sealed by epoxy resin completely separated with rotor, waterproof, avoided water-leakage problem which long exists in normal DC motor pump products.

Ø Protection functions can be customized such as lock protection, dry-run protection and so on.

Ø Reduced the mortality to 0.05% after long-time study by R&D dep.

Ø Suitable for submersible installation.

Ø Offer ODM serve for pump and other controller system.
