11meters 450LPH 12V PUMP

Brand:Blue Fish

Description:2017 Low Consumption High Flow Blue fish 11meters 450LPH 12V PUMP submersible cycling water pump wholesale

Origin:China Guangdong

Model:WIN-140405

Port:SHENZHEN

Payment Terms:T/T

Supply Ablility:3

Delivery Time:2017-11-10

Packaging Details:Parameters: Model:WIN-140405 Voltage Range:5-14V Max Lift:5M Flow Rate:450L/H Max Power:14.4W Specifications： ​1、Dimensions:90mm*46.4mm*67.2mm 2、Weight：370g 3、Outlet dimension:10mm 4、Inlet dimentsion:14mm 5、Pump body material:PA66+30%GF 6、 Max. loading current：rated current±0.1 7、Types of fluids:water，oil，acid-base solutions（according to test result） 8、Fluid working temperature;：-10-50℃(fluid should be kept from freezing） 9、Working environment temperature：-10-50℃ 10、Storage temperature：-10-50℃ 11、Noise level:<40dB（while pumping water ） 12、Water proof level:IP68（submersible) 13、Power supply:solar power，battery，adapter，battery module 14、Life expectancy： more than 20,000 hrs Features： 1、Small size，high efficiency，long life expectancy，low noise level； 2、Ceramic shaft，Carbon graphite seal low coefficient of friction； 3、0.5% non-comformity rate < 0.5% 4、Brushless, no mechanical wear，electronic commutator， 5、The electricity and fluid are insulated from each other，sealed with epoxy，100% water proof，leakage proof； Product photos: InkedIMG_9596_LI InkedIMG_9597_LI Dimensions： DC24V600 Spare Parts: image Flow Rate / Lift Curve: Inked1_LI

Product detail: Parameters:

Model:WIN-140405

Voltage Range:5-14V

Max Lift:5M

Flow Rate:450L/H

Max Power:14.4W

Specifications：

​1、Dimensions:90mm*46.4mm*67.2mm

2、Weight：370g

3、Outlet dimension:10mm

4、Inlet dimentsion:14mm

5、Pump body material:PA66+30%GF

6、 Max. loading current：rated current±0.1

7、Types of fluids:water，oil，acid-base solutions（according to test result）

8、Fluid working temperature;：-10-50℃(fluid should be kept from freezing）

9、Working environment temperature：-10-50℃

10、Storage temperature：-10-50℃

11、Noise level:<40dB（while pumping water ）

12、Water proof level:IP68（submersible)

13、Power supply:solar power，battery，adapter，battery module

14、Life expectancy： more than 20,000 hrs

Features：

1、Small size，high efficiency，long life expectancy，low noise level；

2、Ceramic shaft，Carbon graphite seal low coefficient of friction；

3、0.5% non-comformity rate < 0.5%

4、Brushless, no mechanical wear，electronic commutator，

5、The electricity and fluid are insulated from each other，sealed with epoxy，100% water proof，leakage proof；

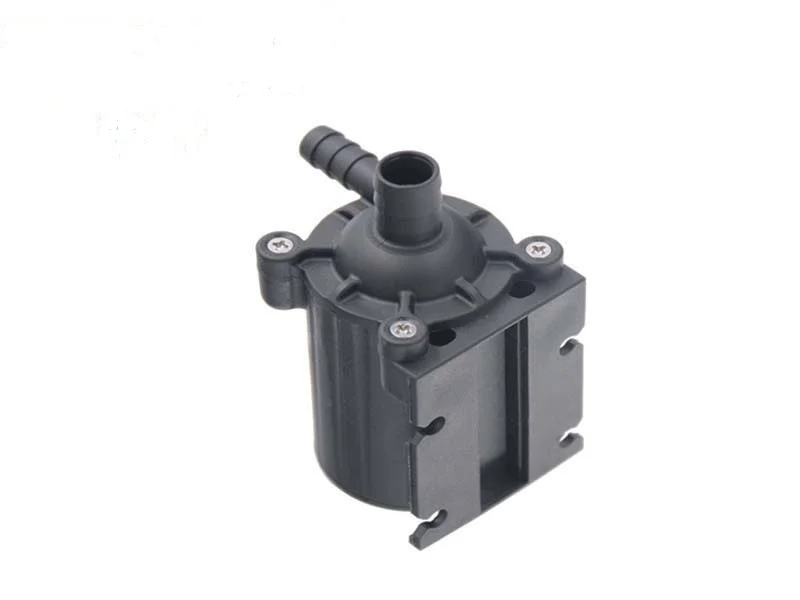

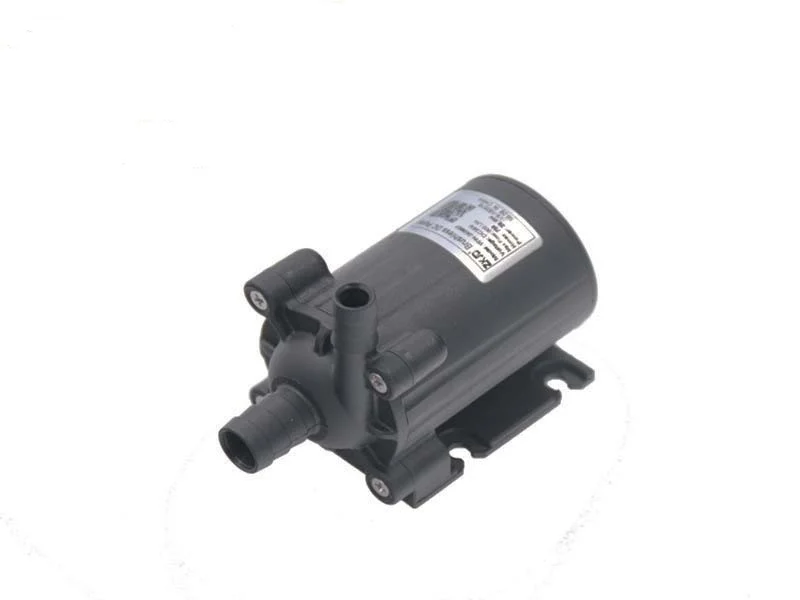

Product photos:

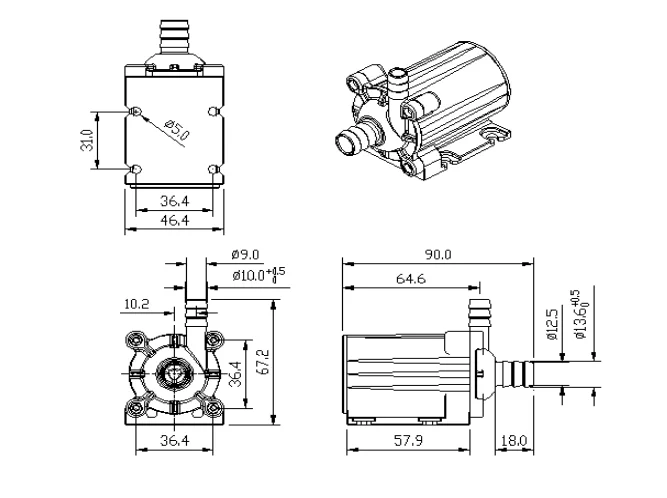

Dimensions：

Spare Parts:

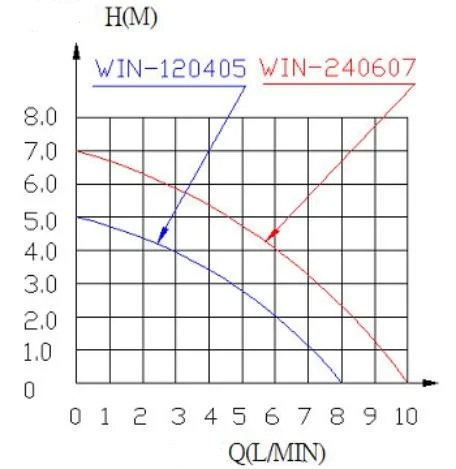

Flow Rate / Lift Curve:

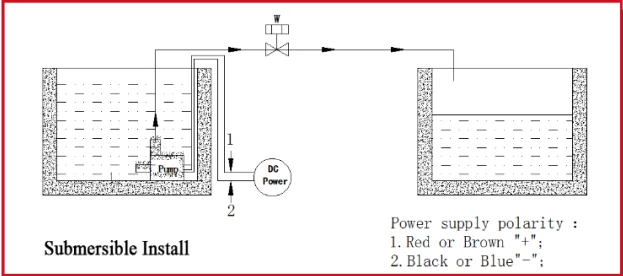

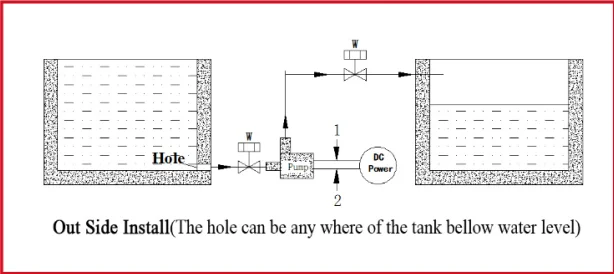

 Ｈow to install：
