Brand:Speed cable
Description:It is used as connection cable or wire of rated voltage 450/750V or lower for power plants,fixed wiring and flexible connection for electrical appliances
Origin:China Hunan
Model:BV，BVR
MOQ:2000mMeter
FOB:perMeter0.0425--36.5USD
Port:Huangpu,Guangzhou
Payment Terms:T/T
Supply Ablility:1000Meter
Supply Time:Week
Packaging Details:PP packing, wooden packing, drum packing or as your requirement
Product detail:
| Application: | ||
| The cable is used as connection cable or wire of rated voltage 450/750V or lower for power plants ,fixed wiring and flexible connection for electrical appliances. | ||

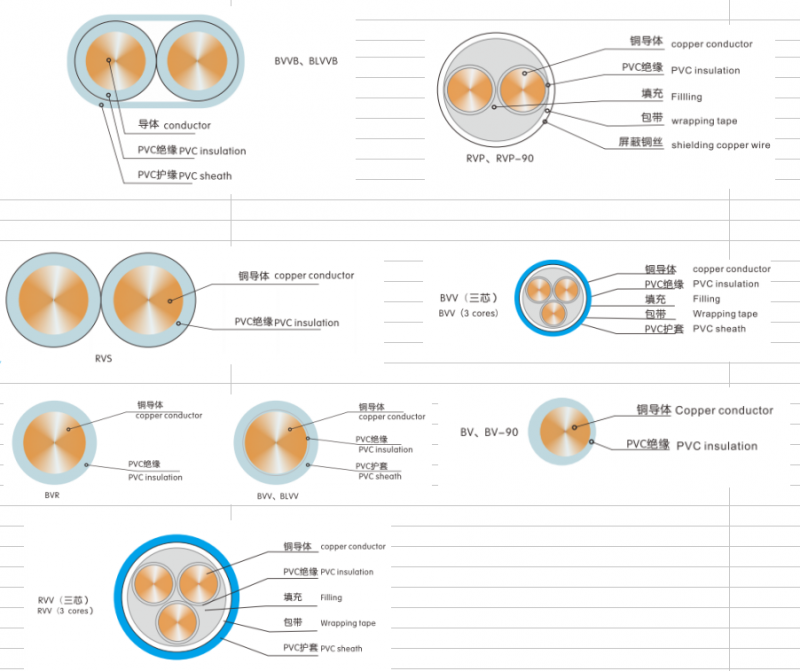

| Type and name | ||
| Type | name | Executive standard |
| 60227IEC01(BV) | cable with hard single conductor,without sheath for general purpose | GB/T 5023-2008 GB/T5023.3-2008 |
| 60227IEC02(RV) | cable with soft single conductor,without sheath for general purpose | |
| 60227IEC05(BV) | cable with solid single conductor,without sheath at 70℃ of conductor temperature for interior wiring | |
| 60227IEC06(RV) | cable with soft single conductor ,without sheath at 70℃ of conductor temperature for interior wiring | |
| 60227IEC07(BV-90) | cable with solid single conductor ,without sheath at 90℃ of conductor temperature for interior wiring | |
| 60227IEC08(RV-90) | cable with soft single conductor ,without sheath at 90℃ of conductor temperature for interior wiring | |
| 60227IEC10(BVV) | light type with PVC sheath | GB/T 5023.4-2008 |
| 60227IEC52(RVV) | light type soft wire with PVC sheath | GB/T5023.5-2008 |
| common soft wire with PVC sheath | ||
| soft cable with oil-proof and shielding ,PVC sheath | GB/T5023.7-2008 | |
| 60227IEC75(RVVY) | soft cable with oil-proof and non-shielding ,PVC sheath | |
| BV | wire with copper core,PVC insulation | |
| BLV | wire with al core PVC sheath | |
| BVR | soft wire with cu core,PVC insulation | |
| BVV | round cable with al core,PVC insulation | |
| BLVV | round type cable with copper core,PVC insulation | JB/T8734.2-2016 |
| BVVB | flat type cable with cu core,PVC insulation | |
| BLVVB | flat type cable with al core,PVC insulation | |
| RVS | soft wire with cu core,PVC insulation,stranding and connection | JB/T8734.3-2016 |
| RVB | soft wire with PVC insulation,flat without sheath | |
| RVV | soft cable with PVC insulation and PVC sheath | |
| RVP | soft wire with cu core,PVC insulation and shielding | JB/T8734.5-2016 |
| RVP-90 | soft wire with cu core heating-resisting 90℃，PVC insulation and shielding | |
| RVVP | soft cable with cu core,PVC insulation and shielding,PVC sheath | |
| Note:1.we also produce the cables with ROHS standard,removal of lead,cadmium,mercury hexavalent chromium,polybrominated biphenylpbdes substances may cause harm to human body health,to be no heavy 2.Prefix AZ-,ZB-,ZC- is added to the original type for indication of flame retardant cable,for example ZB-RVVP(Soft cable with cu core,PVC insulation,PVC sheath,shielding and B-Class flame retardance. 3.Prefix NH- is added to the original type for for indication of fire resistant cable,for example NH-BV(Wire with Cu core,PVC insulation and fire resistance),ABN-BVR(soft cable with cu core,PVC insulaiton,B-Class flame retardant and fire resistance) |
||
| Using features | ||
| 1.Long-term Max. working temperature allowed by cable conductor 60227IEC(BV-90).................................................................90℃ 60227IEC(RV-90).................................................................90℃ other type.............................................................................90℃ 2.Enviroment temperature of laying should be not less than 0℃ Bending radius of cable D≤25mm ........................................≥4D D>25mm ..............................................................................≥6D (D is outer diameter of cable) 3.Rated voltage U0/U is 450/750V,300/300V,300/350V  |
||
