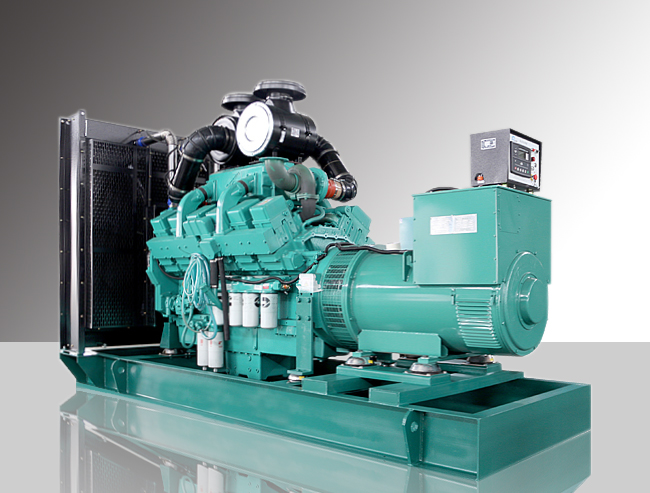

diesel generator set

Click for original picture
engine: Cummins
alternator: Stanford
control panel: Deepsea
Fob Price: Discuss personally
Port: Shenzhen
Supply Ability: 100
Payment Terms: delivery withindays since payment
Location: China
  James    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:Zimbon

Origin:China Yunnan

MOQ:1Sets

FOB:perSets500--500000USD

Port:Shenzhen

Payment Terms:T/T

Supply Ablility:100Sets

Supply Time:Week

Delivery Time:2016-11-15

Packaging Details:fumigation polywood case FCL 20" container Customer request

Product detail:

200kw silent type 4stroke direct injection soundproof diesel generator set



Packing&Delivery

Packing: plastic films wrapper&plywood case



Date of delivery: within 7-14 days from the date of contract



Payment: 30% deposit from contract day, 70% on board.







Specification Data:

Zimbon Power is a Chinese manufacturer specialized in the production of national and imported diesel generator sets ranged form 5KWto 2500W strictly in accordance with GB/T2820-1997 standard. Power engine include world famous cummins perkins and also Chinese famous brand like Yuchai, Wechai. Alternator we mach with stanford, marathon etc. Our main product include open generator sets, silent generator sets, mobile generator sets and also gas generators.

Cummins series generator set:

Power range: 24kw-2000kw(30kva-2500kva) mached with Marathon Kepu ,Stamford, Siemens alternator

Genset Model

Genset Power
(KW/KVA)

Engine Model

Cylinder

Displacement
(L)

Dimension
(mm)

Weight
(kg)

ZB-24GF

24

30

4B3.9-G2

4

3.9

1600*750*1200

700

ZB-30GF

30

37.5

4BT3.9-G2

4

3.9

1700*750*1200

720

ZB-50GF

50

62.5

4BTA3.9-G2

4

3.9

1800*750*1200

800

ZB-75GF

75

93.75

6BT5.9-G1/G2

6

5.9

2200*800*1300

1180

ZB-100GF

100

125

6BTA5.9-G2

6

5.9

2250*830*1300

1200

ZB-120GF

120

150

6BTAA5.9-G2

6

5.9

2250*830*1350

1300

ZB-150GF

150

187.5

6CTA8.3-G2A

6

8.3

2500*860*1400

1800

ZB-180GF

180

225

6CTAA8.3-G2

6

8.3

2600*880*1500

2100

ZB-200GF

200

250

6LTAA8.9-G2

6

8.9

2600*900*1500

2300

ZB-200GF

200

250

NT855-GA

6

14

3000*1020*1750

2600

ZB-240GF

240

300

NTA855-G1A

6

14

3100*1020*1750

2700

ZB-250GF

250

312.5

NTA855-G1A

6

14

3100*1020*1750

2700

ZB-280GF

280

350

NTA855-G2A

6

14

3200*1020*1750

2800

ZB-300GF

300

375

NTA855-G2A

6

14

3200*1020*1750

2800

ZB-350GF

350

437.5

NTAA855-G7A

6

14

3300*1450*1700

3000

ZB-360GF

360

450

KTA19-G3

6

18.9

3400*1250*1970

3250

ZB-400GF

400

500

KTA19-G4

6

18.9

3400*1250*1970

3400

ZB-450GF

450

562.5

KTAA19-G5

6

18.9

3400*1300*1970

3600

ZB-500GF

500

625

KTAA19-G6A

6

18.9

3600*1400*1970

4200

ZB-500GF

500

625

KTA19-G8

6

18.9

3400*1300*1970

4200

ZB-600GF

600

750

KTA38-G2

12

37.8

4470*1700*2200

7000

ZB-630GF

630

788

KTA38-G2

12

37.8

4470*1700*2200

7200

ZB-720GF

720

900

KTA38-G2A

12

37.8

4480*1800*2200

7400

ZB-800GF

800

1000

KTA38-G2A

12

37.8

4600*1800*2200

7600

ZB-880GF

880

1100

KTA38-G5

12

37.8

4600*1800*2200

7800

ZB-1000GF

1000

1250

KTA38-G9

12

37.8

4800*1800*2300

8200

ZB-1200GF

1200

1500

KTA50-G3

16

50.3

5150*2000*2300

8400

ZB-1250GF

1250

1563

KTA50-G8

16

50.3

5200*2000*2300

8800

ZB-1500GF

1500

1875

QSK60-G3

16

60

6175*2287*2537

14800

ZB-1600GF

1600

2000

QSK60-G4

16

60

6175*2287*2537

15000

ZB-1800GF

1800

2250

QSK60-G8

16

60

6175*2287*3116

17000

ZB-2000GF

2000

2500

QSK78-G6

18

77.6

7158*2250*2535

25000



Available Accessories



1. ATS(Automatic Transfer Switch);

Which can start the diesel generator when the main power is off; when the main power comes back, it will shut down generator.

ATS系统



2. Battery charger(float charger);

When the generator hasn't been used for long time, the batteries will be no power, in that way, you can't start the generator. But the battery charger can charge the batteries from main power.



3. Extra daily fuel tank;

It will be requested while the base fuel tank capacity is not enough for daily fuel consumption.



4. Paralleling system;

This system can make several generators work together and automatically distrubute the load according to set.



5. Water Separate(additional cooling system);

If the ambient temperature is too high, it will be harmful to the diesel generator. Fan and water cooling is not enough for radiate. The water separate system is much better for cooling, and the life of generator will be much longer.

FAQ:

Q: Are you manufacturer?

A: Yes, we are manufacturer of generator set ranging from 5-2000KW with all kinds of rand engine for more than 10 years, We have our own factory, Located in Kunming city Yunnan Province.

Q: What is the MOQ?

A: The MOQ is 1 set. But more quanity you need, more discount we will offer.

Q: What is the delivery time?

A: The delivery time is about 20-25 days.

Q: What is the after-sales service policy?

A: All our generators are with 1 year or 1000hours warranty time. Durning the warranty   period, we can offer you free parts to any quality probelms caused by product quality
