Product detail:

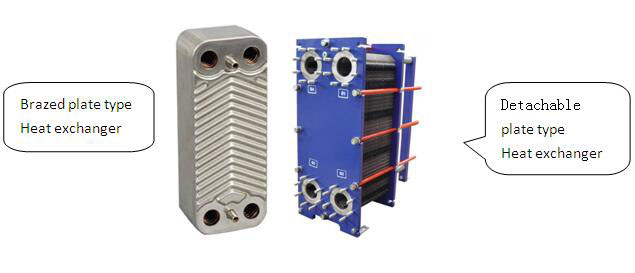

▲The structure of the plate type heat exchanger
In present, the plate type heat exchanger is chosen for most air compressors’ heat recovery.
The thickness of heat exchanger’s plate is normally 0.3-0.4mm, if there is impurity in plate, it is easy to cause potentials corrosion.
The distances between the plates are normally
As the plates are weld by borer tightly, that makes the cleaning become impossible.
As the plates are weld by borer tightly, the lower pressure can bear, and it is easy to leakage.
▲The present use situation of plate type heat exchanger

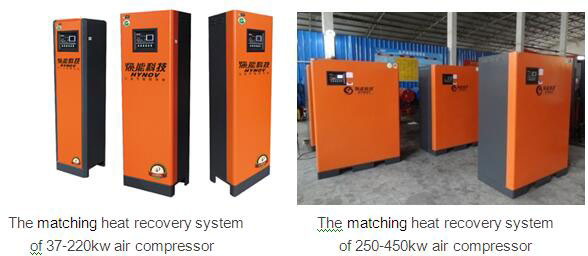

Tube type heat recovery system of air compressor
The outstanding advantages of Hynov technology’s products
☆Vertical Double-Directions and complete counter-current style；use cold water to exchange heat, one overcurrent, small flow rate- Small Tubes, large temperature difference, micro pump pressure
☆The water in “high-temperature zone”: the velocity of flow＞1.5m/s，rotational flow- not easy to scale, equipped with sedimentation cavity for micro water scale
☆Not change the air way- micro pressure loss, All Stainless Steel, free maintenance, removable and washable, over 10 years long service life
