paper cutting machine

FOB:per10500--

Product detail:





Applications：

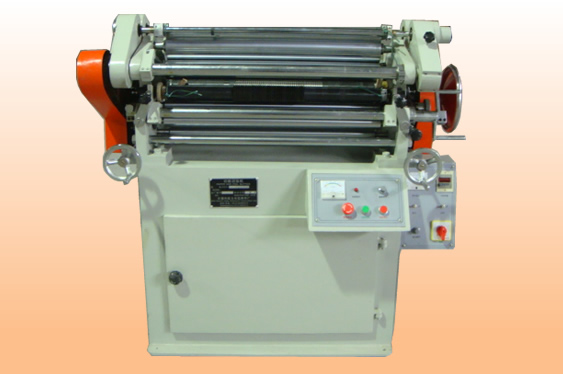

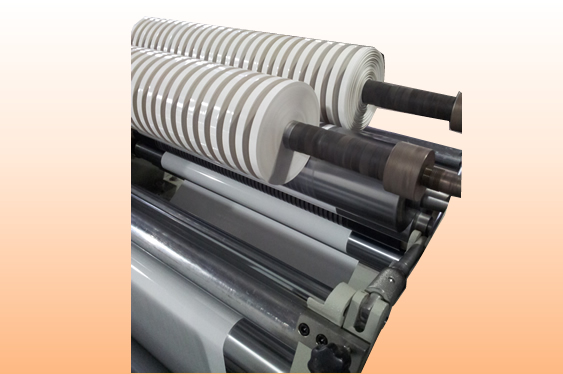

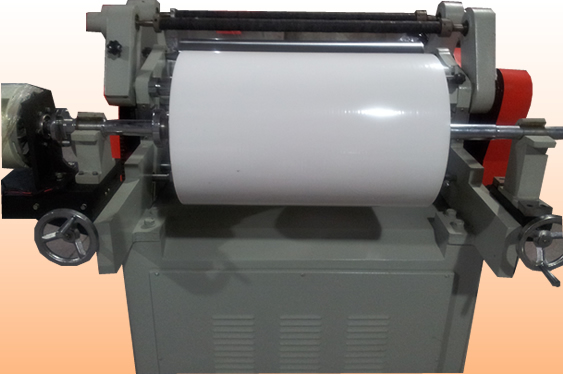

 The FD1-500 Paper and Foil Slitting Machine (hereafter FD1-500) is used for slitting paper ,plastic film, pellicle, aluminum foil, copper foil, mica tape, bonded fiber fabric and various types of adhesive tape and ribbon materials from 0.01 to 0.25mm thickness.
Equipped with Z2-41-3KW / Z2-32-2.2KW DC (direct current) Motor and Length Measurer, FD1-500 is not only capable for steady speed control, but also capable for automatic length measurement control. FD1-500 is the ideal equipment of choice in the industries of capacitor, cable, print, cigarette, aluminum foil and copper foil manufacturing.

Specification Model and name FD 1-500 FD 1-650 Width of un-slit materials 520mm 670mm Diameter of un-slit materials Max. φ600mm Max. φ600mm Inner diameter of un-slit materials φ25-75mm φ25-75mm Maximum diameter of rewinding roll Max. φ320mm Max. φ320mm Width of un-slit materials 500mm 650mm Minimum cutting width Min. 3mm Min. 3mm Slitting mode 0.006-0.06mm 0.006-0.06mm Motor Power 3KW 3KW-5KW Overall dimensions 1170*1000*1250mm 1170*1150*1250mm

•
